Locking Differential Disassembled Views
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

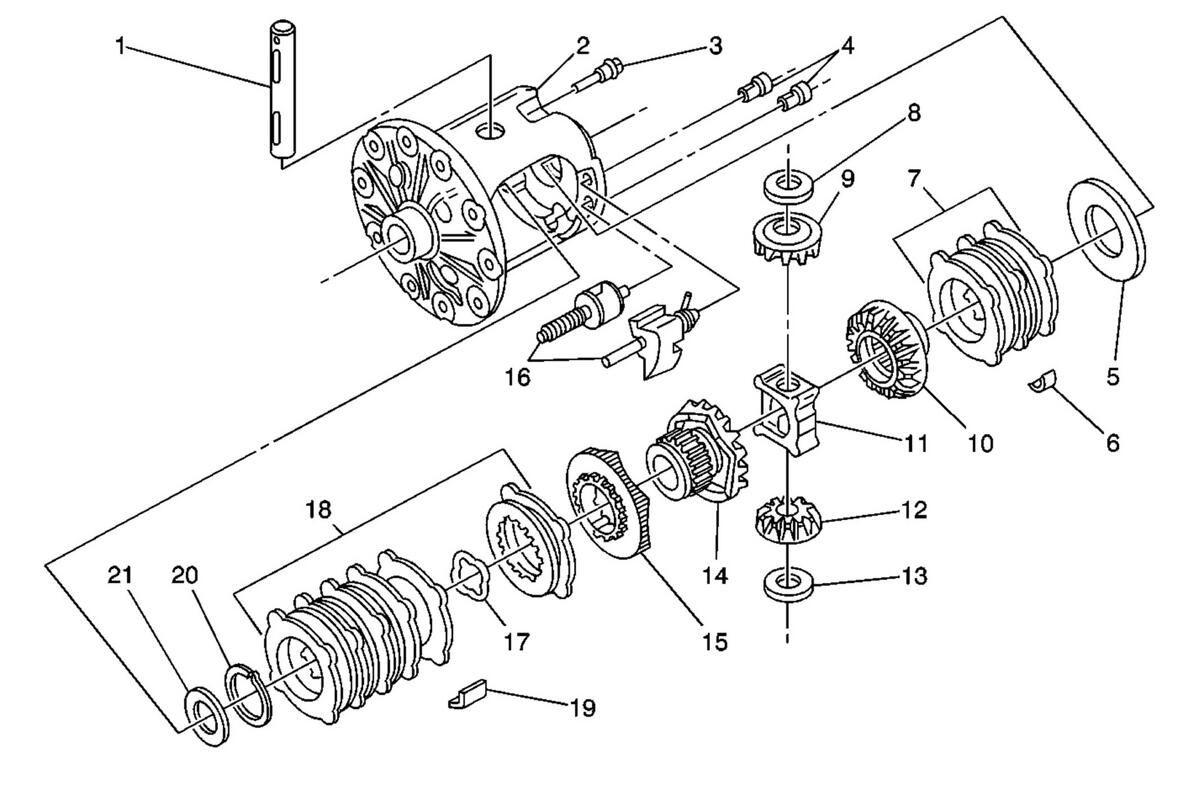

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Differential Pinion Gear Shaft |
| 2 |
Differential Case |
| 3 |
Differential Pinion Gear Shaft Lock Bolt |
| 4 |
Locking Differential Lockout Bushings |
| 5 |
Locking Differential Clutch Disc Thrust Washer |
| 6 |
Locking Differential Clutch Disc Guide |
| 7 |
Locking Differential Clutch Disc Set |
| 8 |
Differential Pinion Gear Thrust Washer |
| 9 |
Differential Pinion Gear |
| 10 |
Locking Differential Side Gear |
| 11 |
Locking Differential Thrust Block |
| 12 |
Differential Pinion Gear |
| 13 |
Differential Pinion Gear Thrust Washer |
| 14 |
Locking Differential Side Gear, Cam-Faced |
| 15 |
Locking Differential Cam |
| 16 |
Locking Differential Governor |
| 17 |
Wave Washer |
| 18 |
Locking Differential Clutch Disc Set |
| 19 |
Locking Differential Clutch Disc Guide |
| 20 |
Locking Differential Snap Ring Retainer |
| 21 |
Locking Differential Clutch Disc Thrust Washer |

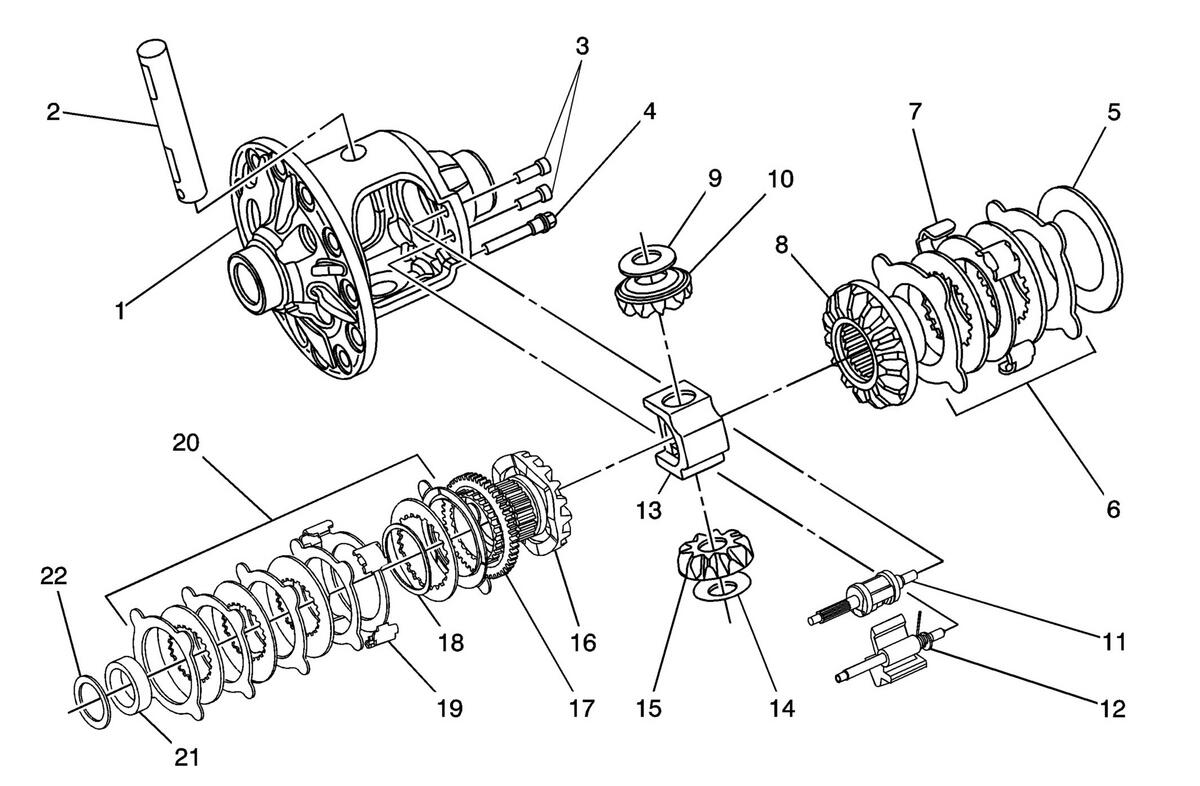

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Differential Case |
| 2 |
Differential Pinion Gear Shaft |
| 3 |
Locking Differential Lockout Bushing |
| 4 |
Differential Pinion Gear Shaft Lock Bolt |
| 5 |
Locking Differential Clutch Disc Thrust Washer |
| 6 |
Locking Differential Clutch Disc Set |
| 7 |
Locking Differential Clutch Disc Guide |
| 8 |
Locking Differential Side Gear |
| 9 |
Differential Pinion Gear Thrust Washer |
| 10 |
Differential Pinion Gear |
| 11 |
Locking Differential Governor |
| 12 |
Locking Differential Latching Bracket |
| 13 |
Locking Differential Thrust Block |
| 14 |
Differential Pinion Gear Thrust Washer |
| 15 |
Differential Pinion Gear |
| 16 |
Locking Differential Side Gear, Cam-Faced |
| 17 |
Locking Differential Cam |
| 18 |
Wave Washer |
| 19 |
Locking Differential Clutch Disc Guide |
| 20 |
Locking Differential Clutch Disc Set |
| 21 |
Locking Differential Side Gear Thrust Sleeve |
| 22 |
Differential Side Gear Shim |
