Windshield Washer Solvent Level Indicator Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

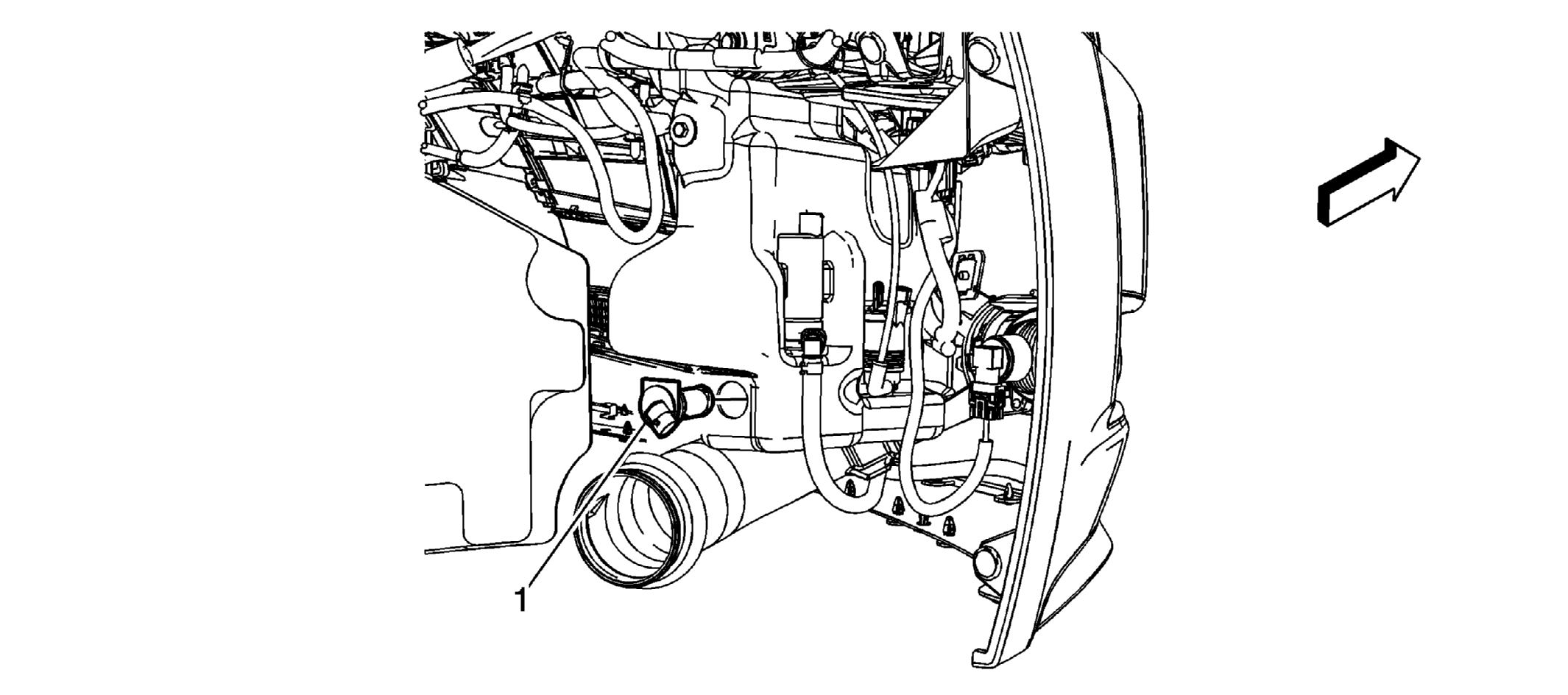

Fig 1: Windshield Washer Solvent Level Indicator Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the right front wheelhouse extension. Refer to Wheelhouse Extension Replacement .
1	Windshield Washer Level Indicator Procedure Place a clean suitable clean container under the washer container to secure spillage when removing the level indicator from the windshield washer solvent container. Disconnect the electrical connection at the windshield washer level indicator. Using two flat-bladed tools placed under the tab on the level indicator, gently pry outward in order to release the level indicator from the washer container grommet. Remove the level indicator and contain the windshield washer solvent. Discard the old windshield washer level indicator grommet.

Callout

Component Name

Preliminary Procedure:
Remove the right front wheelhouse extension. Refer to Wheelhouse Extension Replacement .

Windshield Washer Level Indicator

Procedure

Place a clean suitable clean container under the washer container to secure spillage when removing the level indicator from the windshield washer solvent container.
Disconnect the electrical connection at the windshield washer level indicator.
Using two flat-bladed tools placed under the tab on the level indicator, gently pry outward in order to release the level indicator from the washer container grommet.
Remove the level indicator and contain the windshield washer solvent.
Discard the old windshield washer level indicator grommet.
