Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Auxiliary Battery Negative Cable
    GM1857107Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary battery negative cable to the vehicle.

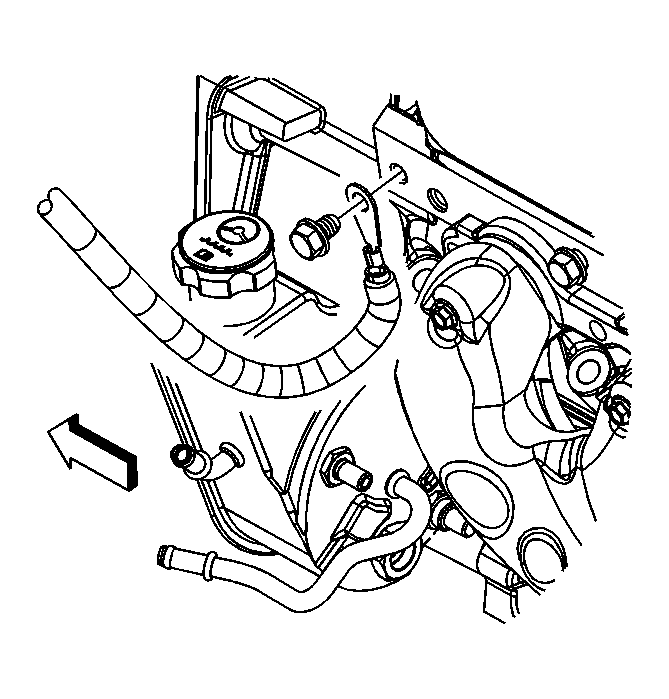

    2. Fig 2: View Of Auxiliary Battery Negative Cable & Cable Ground Terminal Bolt
    GM1857068Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Position the auxiliary battery negative cable ground terminal to the left cylinder head and install the bolt and tighten to 25 N.m (18 lb ft).
  3. Connect the auxiliary battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (With Single Battery) , Battery Negative Cable Disconnection and Connection (With Auxiliary Battery)  or Battery Negative Cable Disconnection and Connection (With Dual Batteries) .
