Case Components

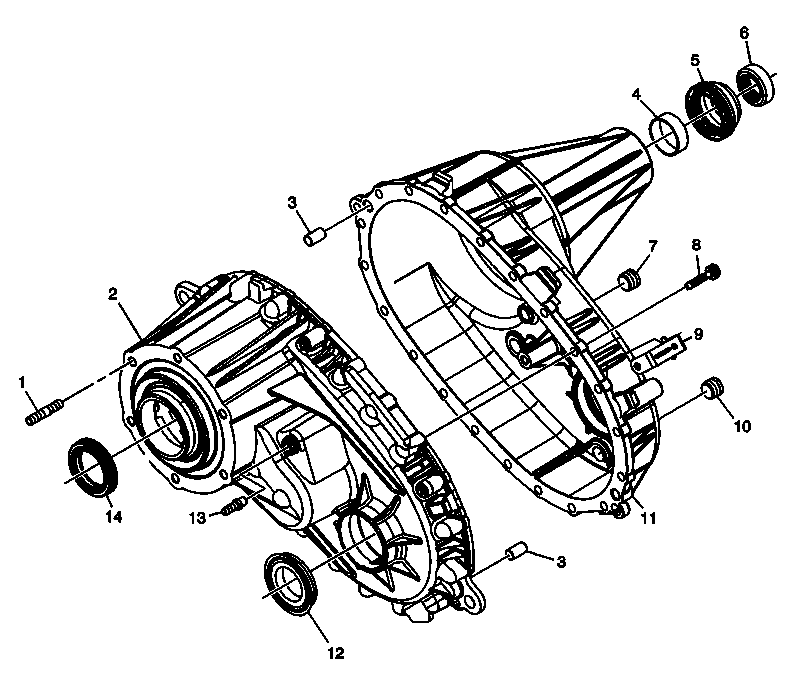

Fig 1: Case Components

GM1708323

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Adapter Stud
2	Front Case Half
3	Location Pin
3	Location Pin
4	Rear Output Shaft Bushing
5	Rear Output Shaft Seal
6	Shipping Seal
7	Fill Plug
8	Case Half Bolt
9	Wiring Harness Bracket
10	Drain Plug
11	Rear Case Half
12	Front Output Shaft Seal
13	Vent
14	Input Shaft Seal
