Front Side Door Lock Replacement

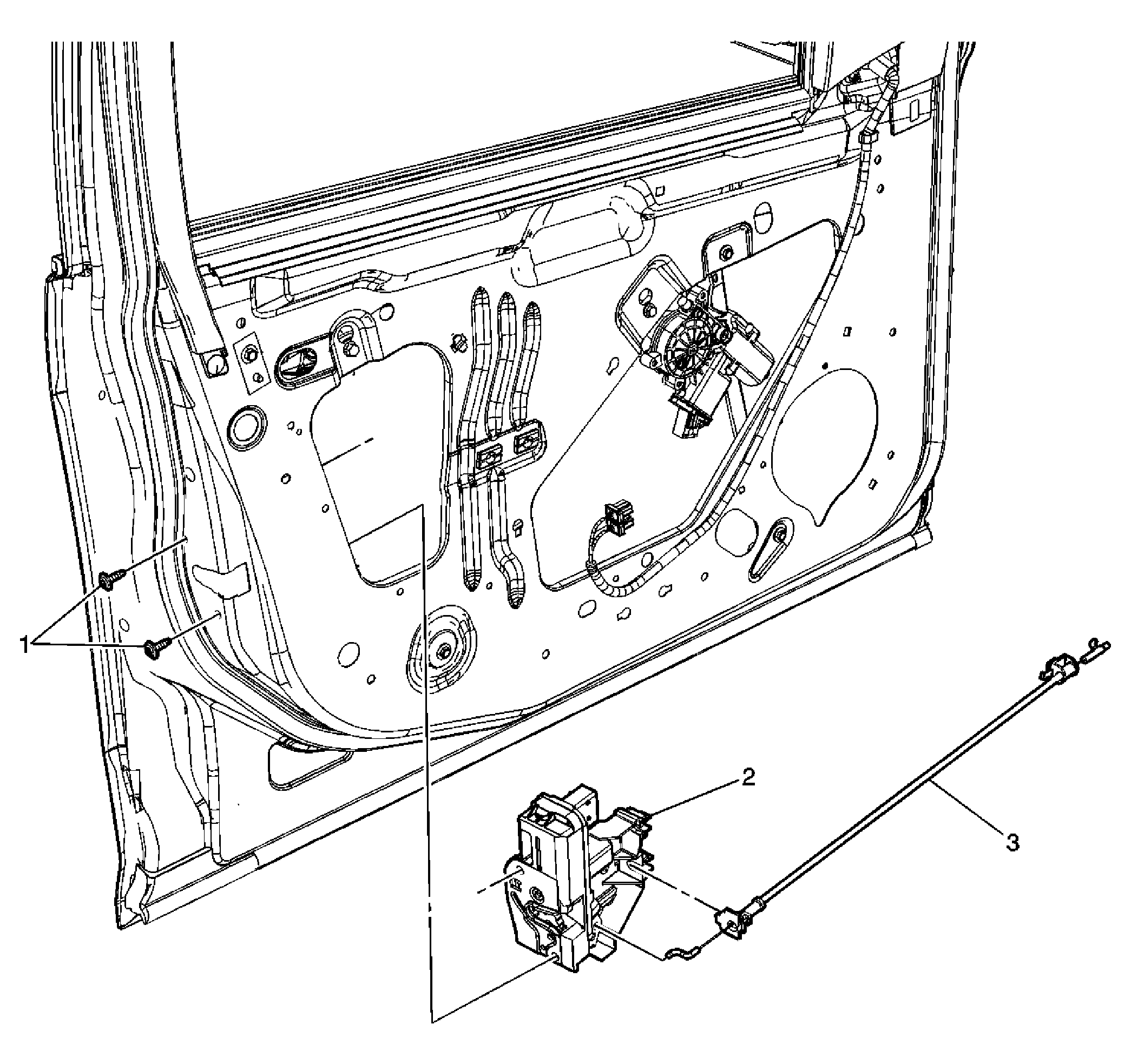

Fig 1: View Of Front Door Inside Handle Cable & Lock Assembly (w/o UA2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim panel. Refer to Rear Side Door Trim Panel Replacement , or Front Side Door Trim Panel Replacement . Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement , or Rear Side Door Water Deflector Replacement .
1	Front Side Door Lock Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Side Door Lock Assembly Procedure Raise the window to the full up position. The following items will need to be disconnected for removal and reconnected for installation: Lock cylinder rod Outside handle lock rod by opening the clip Lock assembly electrical connector Remove the lock assembly from the door with the inside handle cable assembly attached.
3	Front Side Door Inside Handle Cable TIP: Transfer the cable to the new lock.
