Door Control Module- Driver Power, Ground and DLC Wiring Schematic

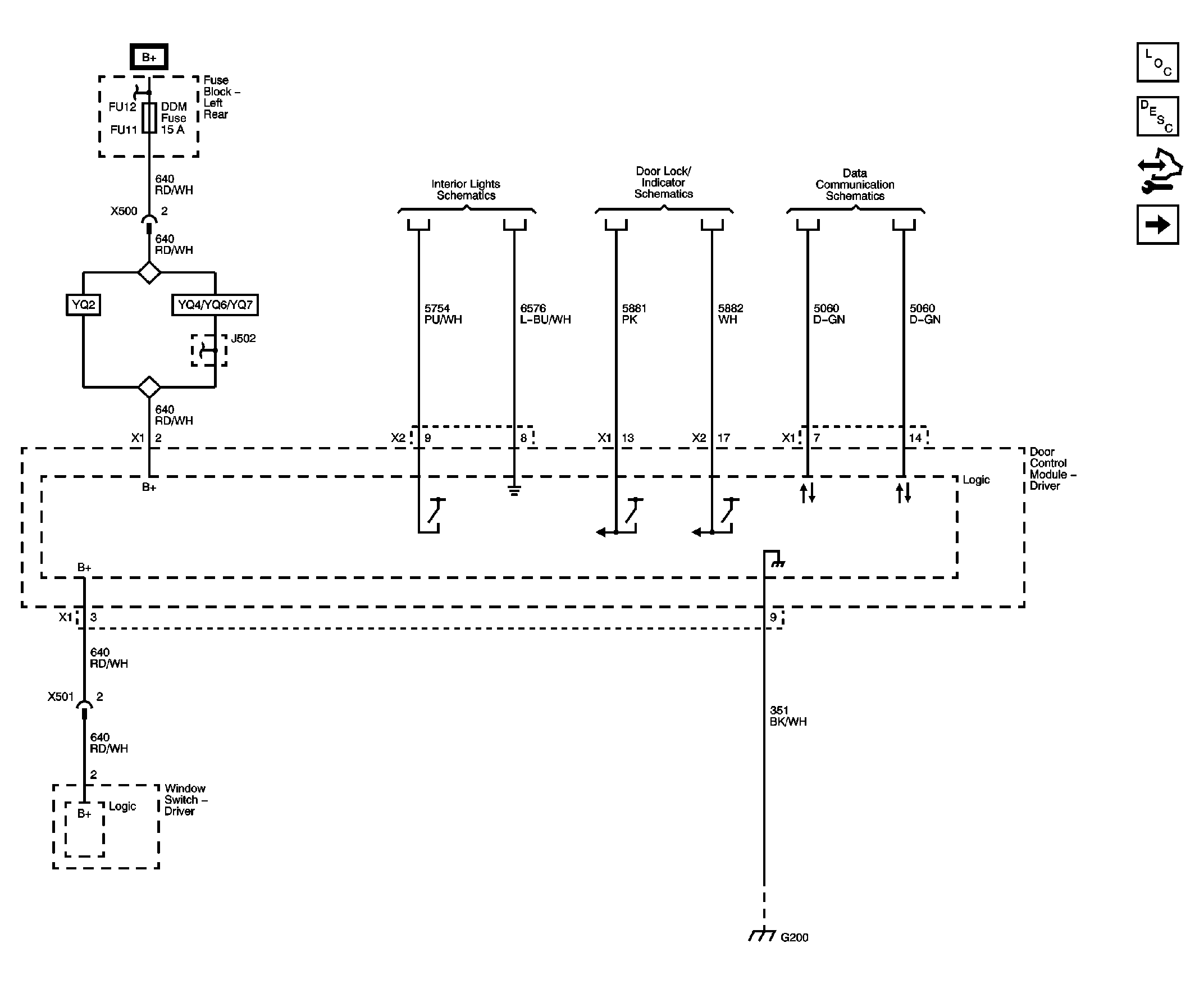

Fig 1: Door Control Module - Driver Power, Ground and DLC Wiring Schematic
GM2410930Courtesy of GENERAL MOTORS COMPANY
