Door Control Module- Driver Signals/Controls Wiring Schematic (1 of 2)

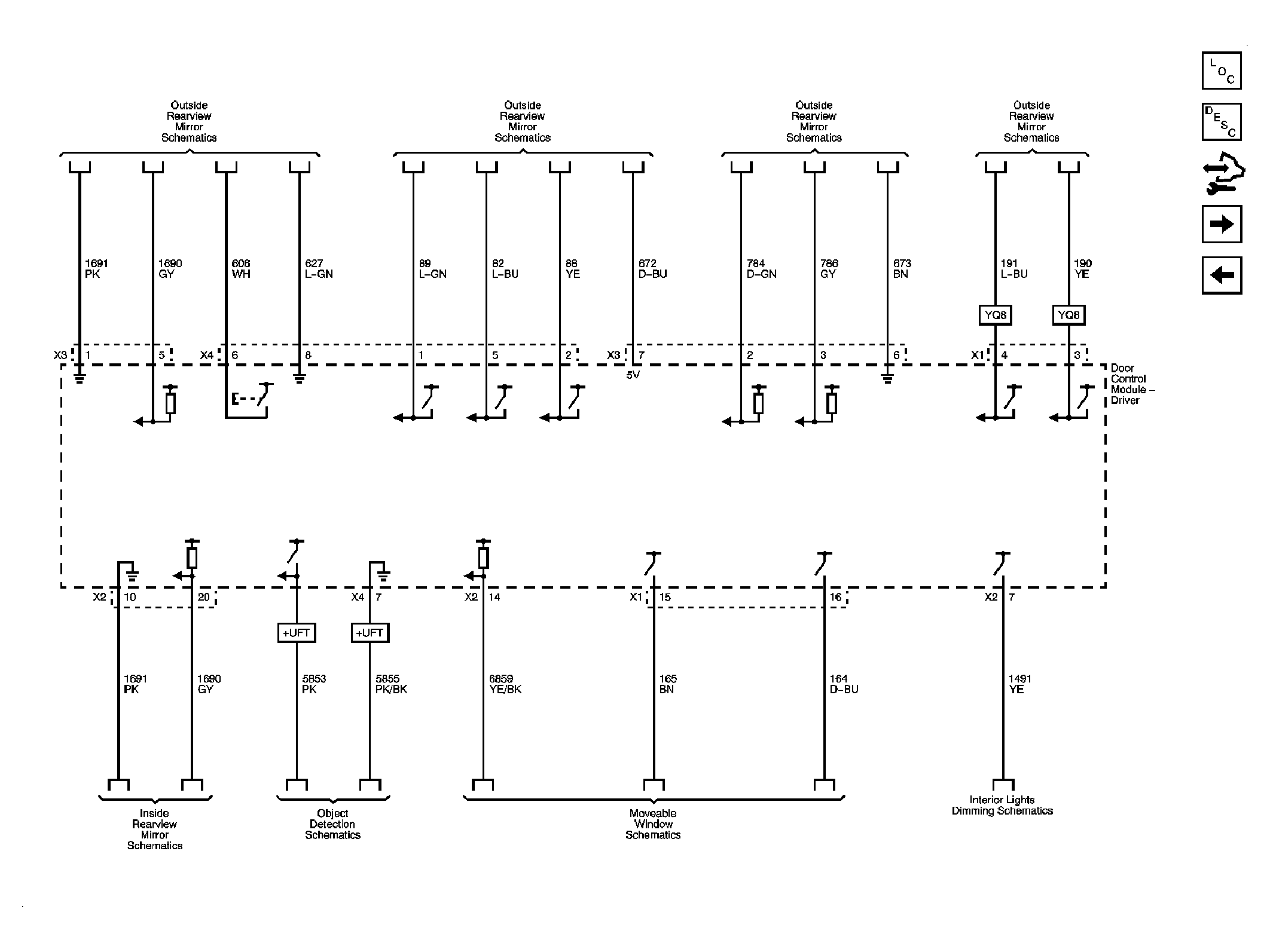

Fig 1: Door Control Module - Driver Signals/Controls Wiring Schematic (1 of 2)
GM2410933Courtesy of GENERAL MOTORS COMPANY
