Antilock Brake System Wiring Schematics (except JL7)
›
Stability Control System
Stability Control System

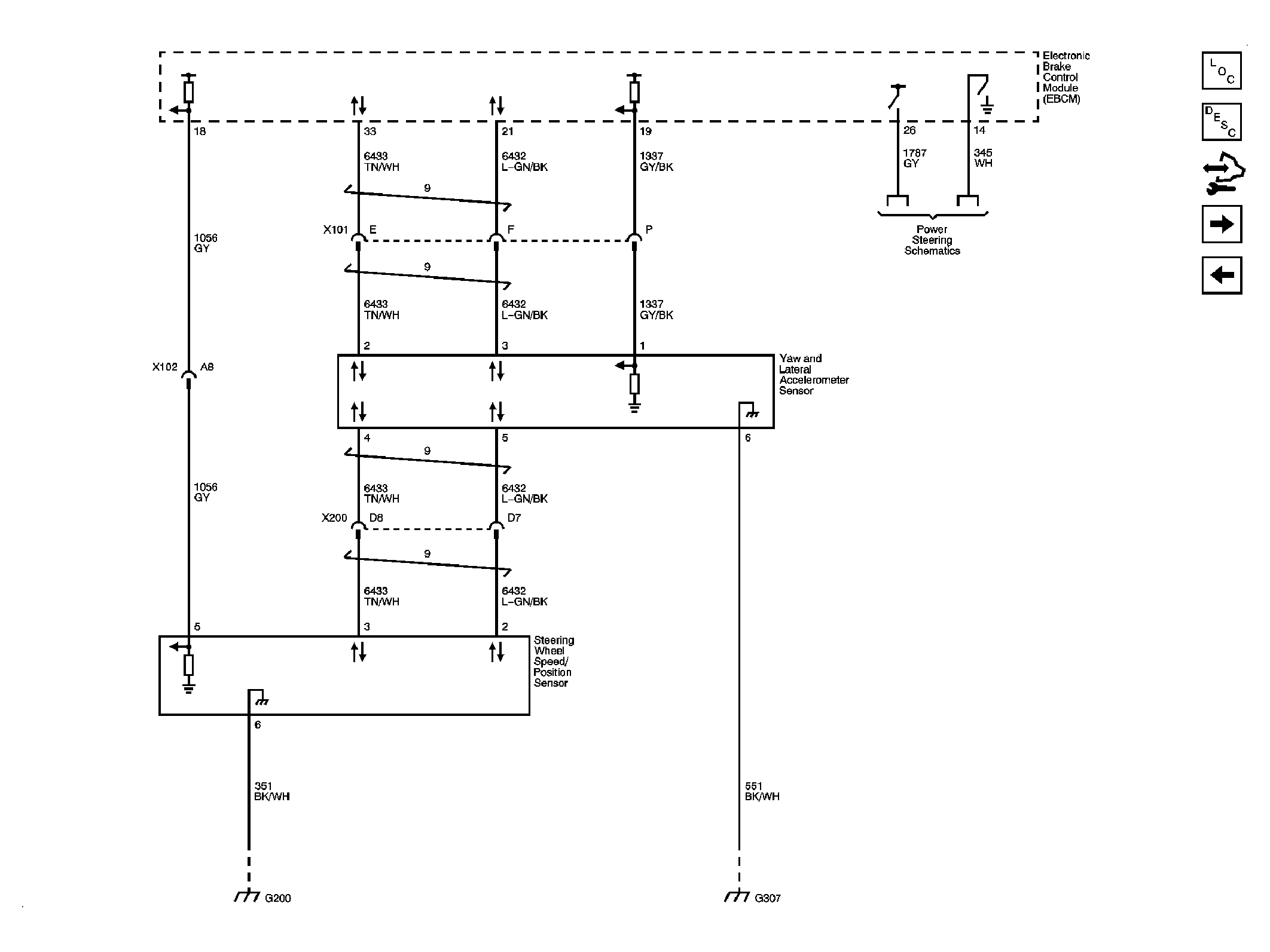

Fig 1: Stability Control System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
