Installation Procedure

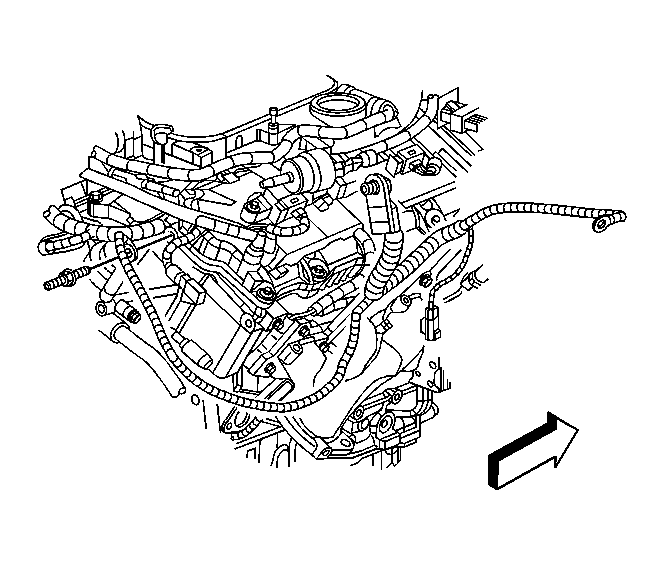

    Fig 1: Identifying Stud Securing Battery Negative Cable To Engine Block
    GM1522523Courtesy of GENERAL MOTORS COMPANY
  1. Install and position the negative battery cable.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the negative battery cable to engine block stud and tighten to 50 N.m (37 lb ft).
    3. Fig 2: View Of Battery Area Mounts And Connectors
    GM772418Courtesy of GENERAL MOTORS COMPANY
  3. Install the bolt (1) securing the negative battery cable to the side rail and tighten to 36 N.m (27 lb ft).
  4. Connect the body harness connector (3) to the negative battery cable.
    5. Fig 3: Instrument Panel (I/P) Harness Electrical Connector
    GM1484712Courtesy of GENERAL MOTORS COMPANY
  5. Connect the I/P harness electrical connector (1) to the battery current sensor.
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (With Side Post) , Battery Negative Cable Disconnection and Connection (With Top Post) .
