Front Engine Compartment Components 2 of 2

Front Engine Compartment Components 2 of 2

Component Name Callout
Coolant Pump - Auxiliary (LLT) 1
Headlamp Washer Fluid Pump Relay (CE4) 2

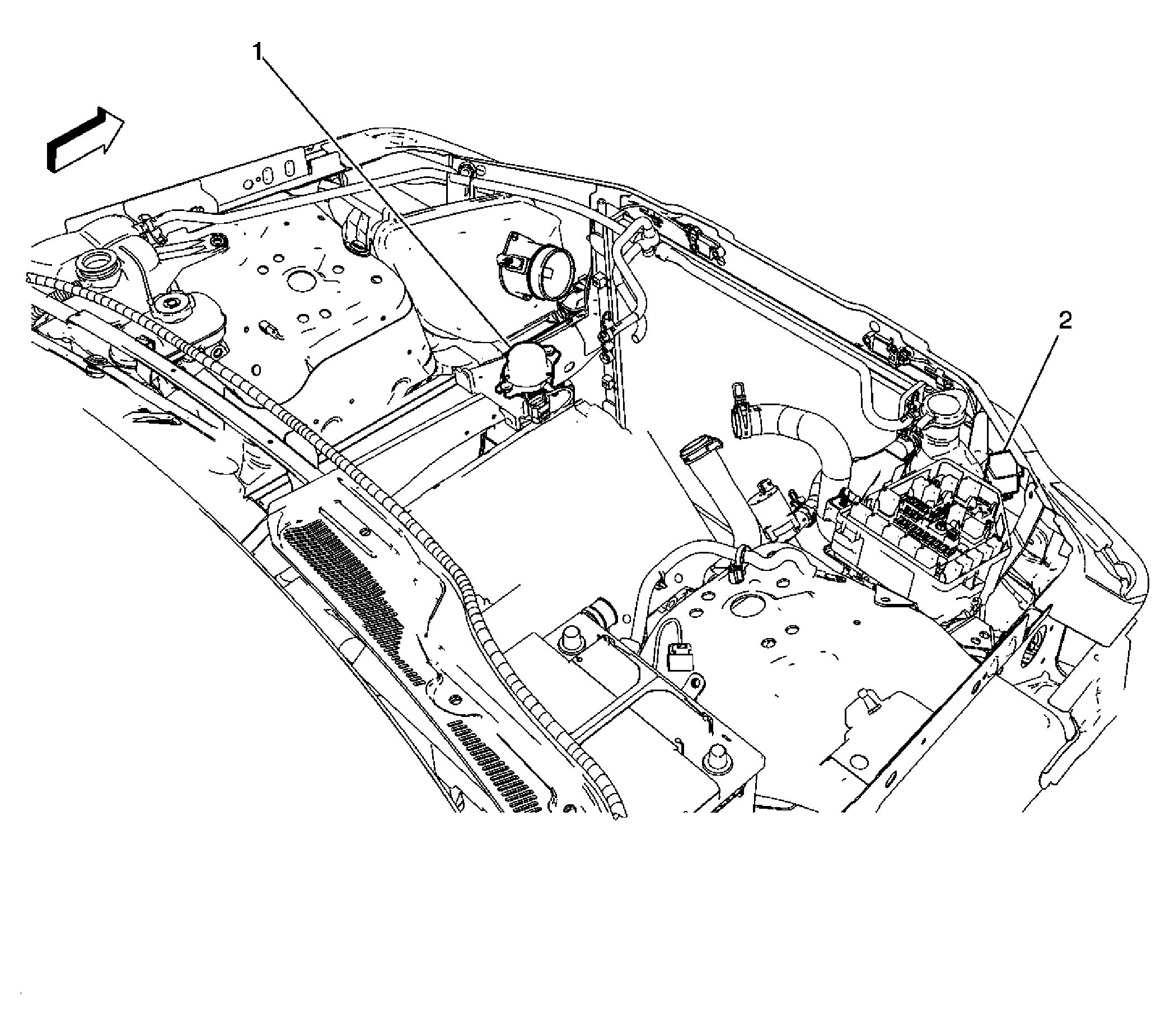

Fig 1: Front Engine Compartment Components (2 of 2)
GM2350614Courtesy of GENERAL MOTORS COMPANY
