Installation Procedure

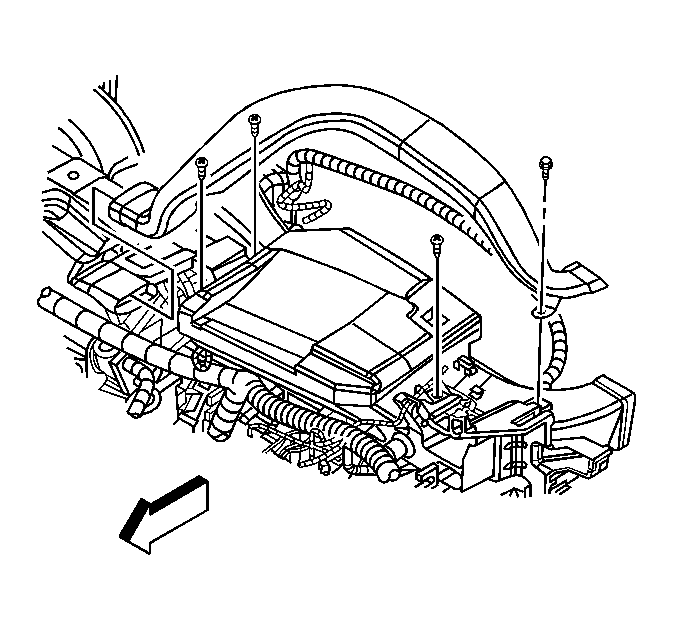

Fig 1: View Of Head Up Display

GM1385970

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

CAUTION:

Refer to Fastener Caution .

Install the screws securing the heads up display to the I/P.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the I/P retainer. Refer to Instrument Panel Retainer Replacement .
