Installation Procedure

  1. Install the oxygen sensor to the catalytic converter. Refer to Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 .
    2. NOTE:

    Do not reuse the catalytic converter inlet seal/heat shield. Always replace with new.

  2. Install the NEW catalytic converter seal/heat shield to the catalytic converter.

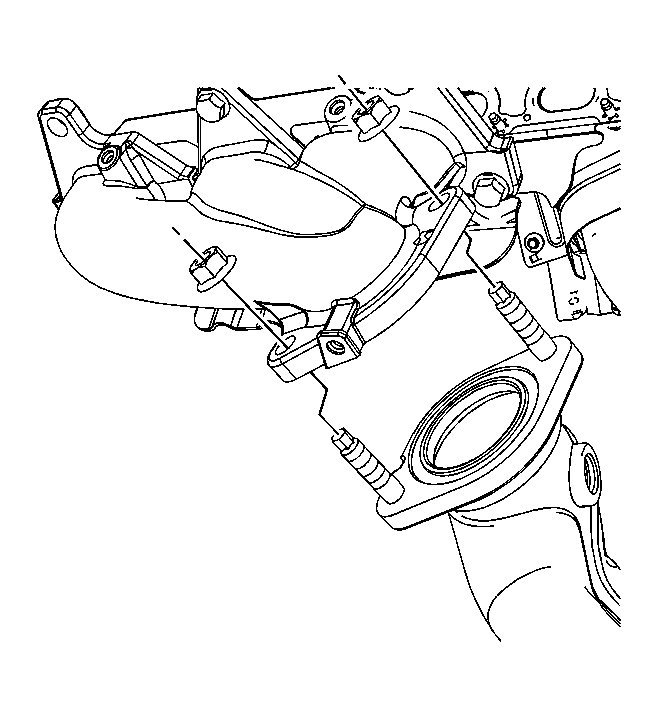

    3. Fig 1: View of Catalytic Converter & Nuts
    GM1973980Courtesy of GENERAL MOTORS COMPANY
  3. Carefully install the catalytic converter to the exhaust manifold.
  4. Install the catalytic converter nuts.
  5. Connect the oxygen sensor electrical connector.
    6. Fig 2: Identifying Muffler Pipes At Left And Right Side Catalytic Converters
    GM1224063Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Inspect the catalytic converter seals. Replace the seals if they are worn or damaged.

  6. Connect the muffler pipes to the left and right side catalytic converters and tighten to 17 N.m (13 lb ft).
  7. Lower the vehicle.
  8. Tighten the catalytic converter to exhaust manifold fasteners to 50 N.m (37 lb ft).
  9. Install the right bank exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Left Side .
