Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

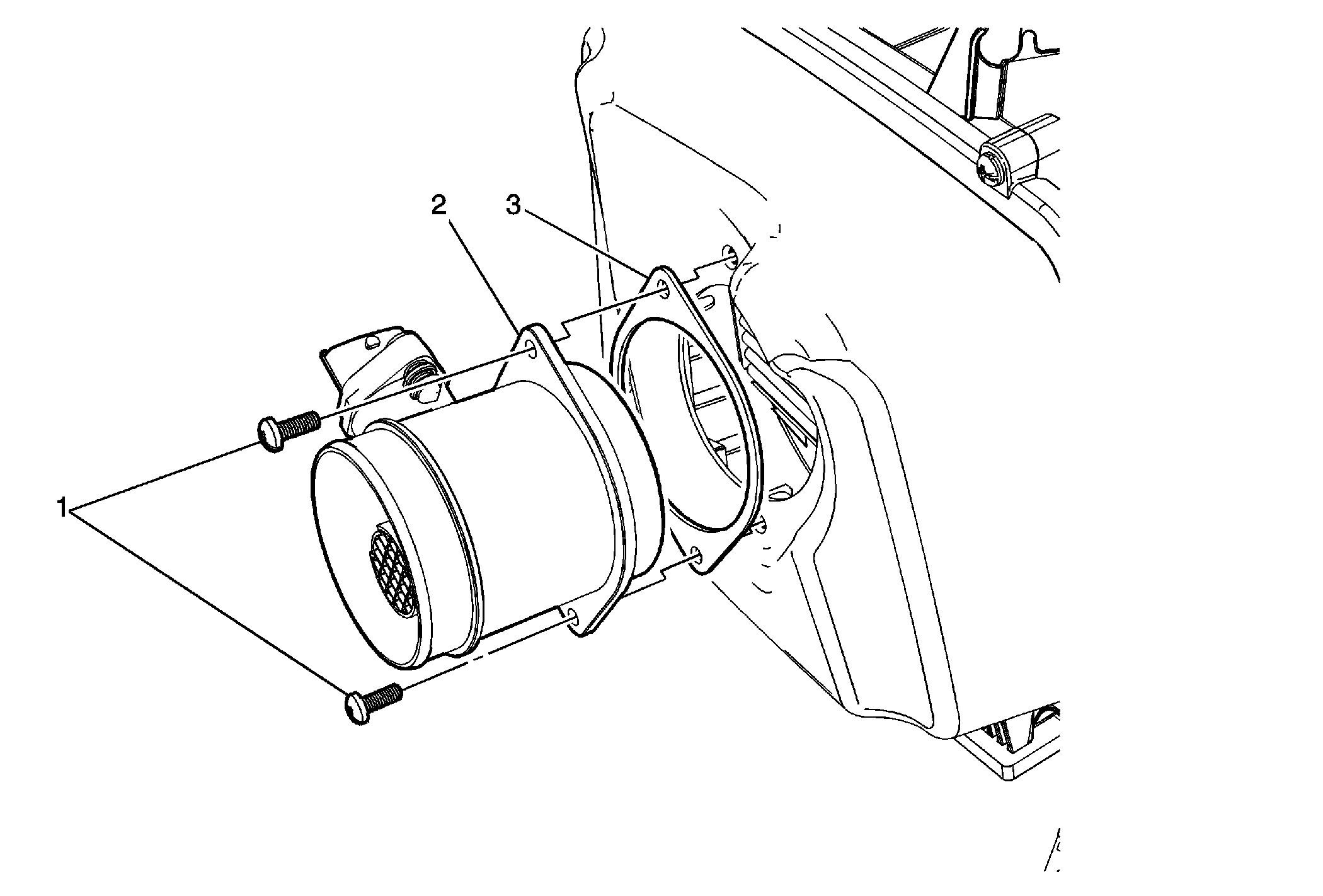

Fig 1: Identifying MAF Screws, Seal & Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turn OFF the ignition. Remove the air cleaner duct. Refer to Air Cleaner Inlet Duct Replacement .
1	Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3.25 N.m (29 lb in)
2	Mass Airflow Sensor/Intake Tempature Sensor Procedure Disconnect the sensor wiring harness.
3	Gasket
