Cadillac
›
2011
›
STS AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Diagrams
›
Body Control System Wiring Schematics
›
IPM Input and Outputs (1 of 3)
IPM Input and Outputs (1 of 3)

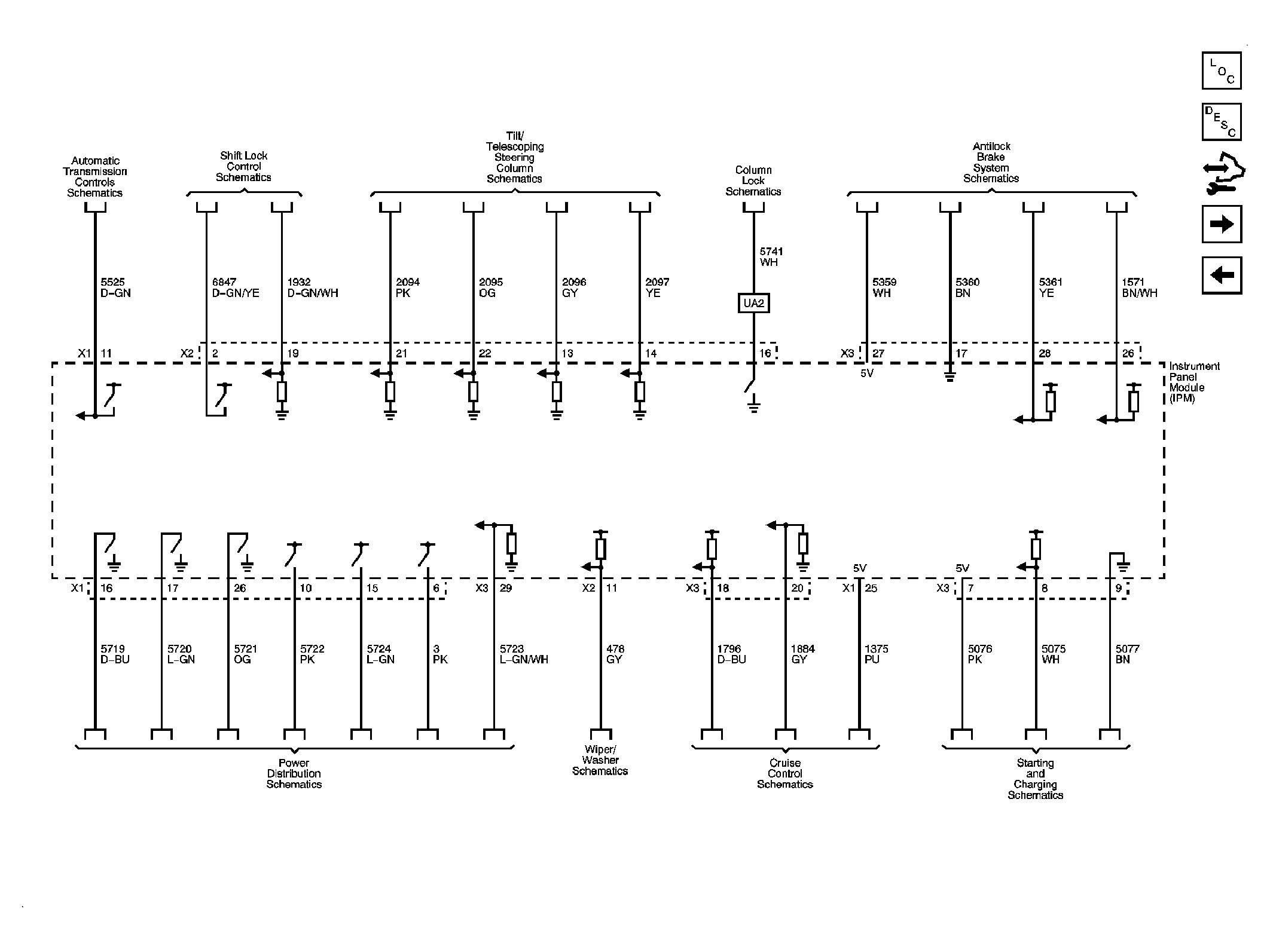

Fig 1: IPM Input and Outputs Wiring Schematic (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
