IPM Input and Outputs (3 of 3)

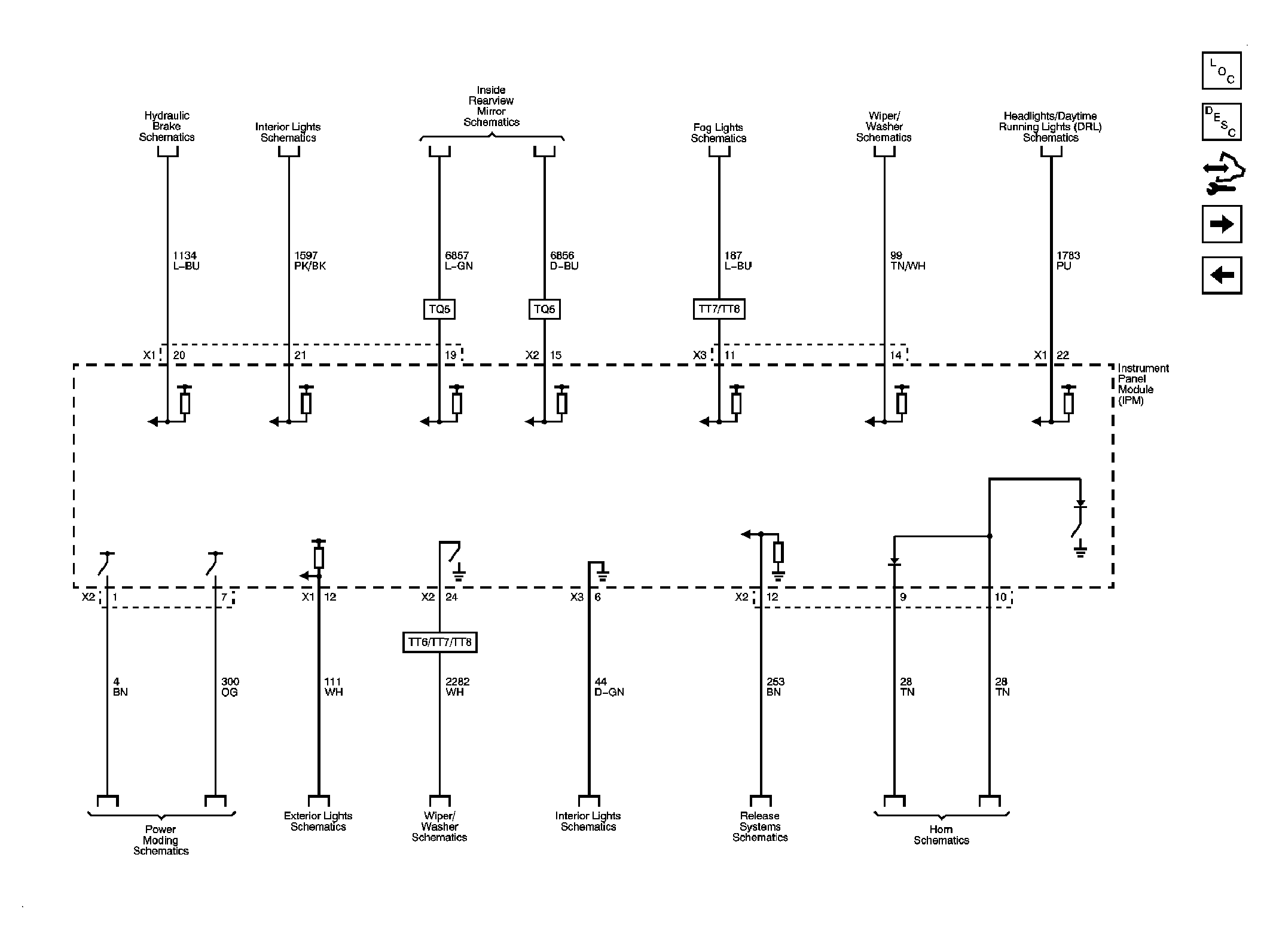

Fig 1: IPM Input and Outputs Wiring Schematic (3 of 3)
GM2411261Courtesy of GENERAL MOTORS COMPANY
