Cadillac
›
2011
›
STS AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Diagrams
›
Body Control System Wiring Schematics
›
RIM Power, Ground and DLC
RIM Power, Ground and DLC

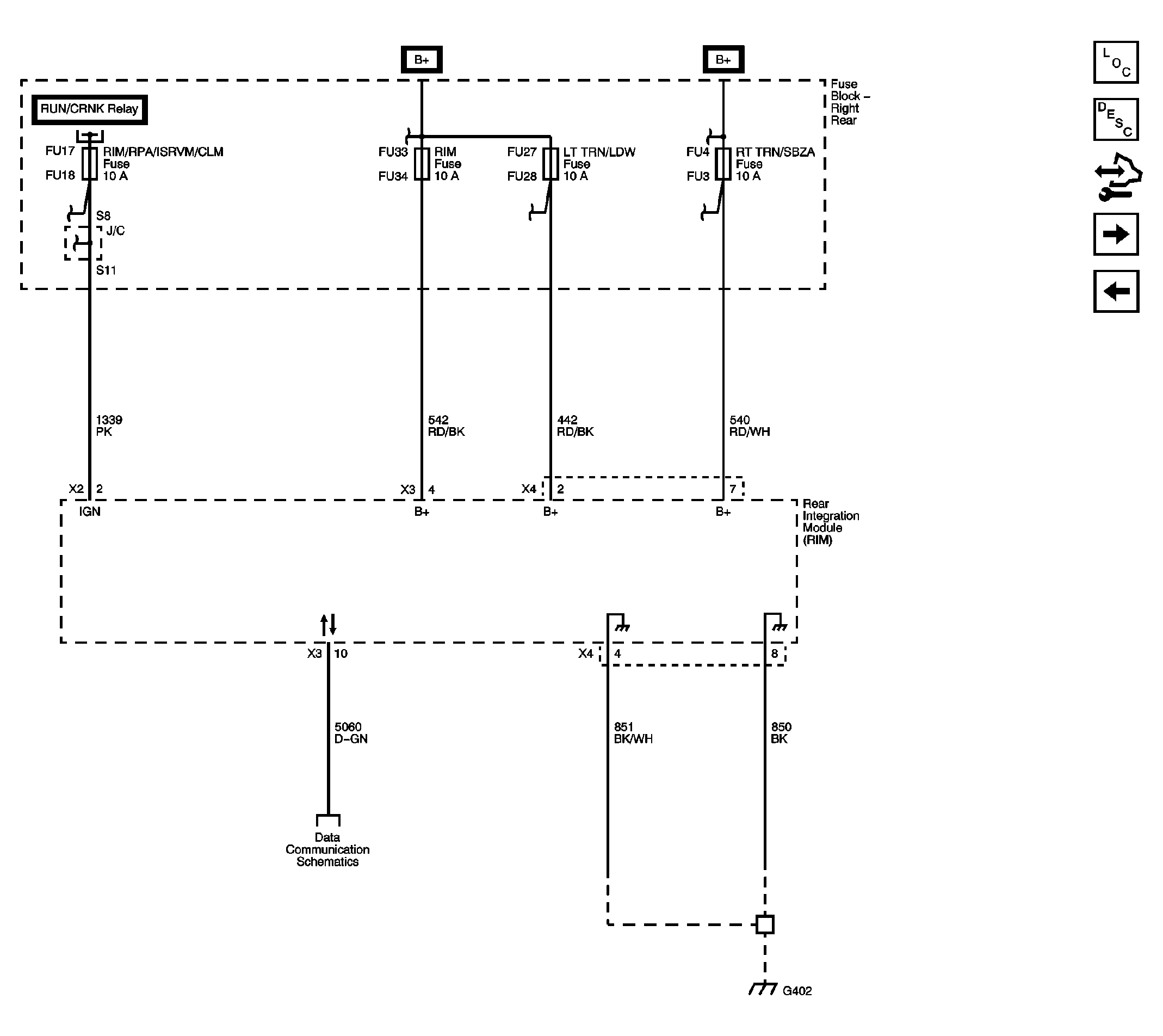

Fig 1: RIM Power, Ground and DLC Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
