Data Communications System
›
Wiring Diagrams
›
Data Communication Wiring Schematics
›
GMLAN- High Speed Serial Data Wake Up
GMLAN- High Speed Serial Data Wake Up

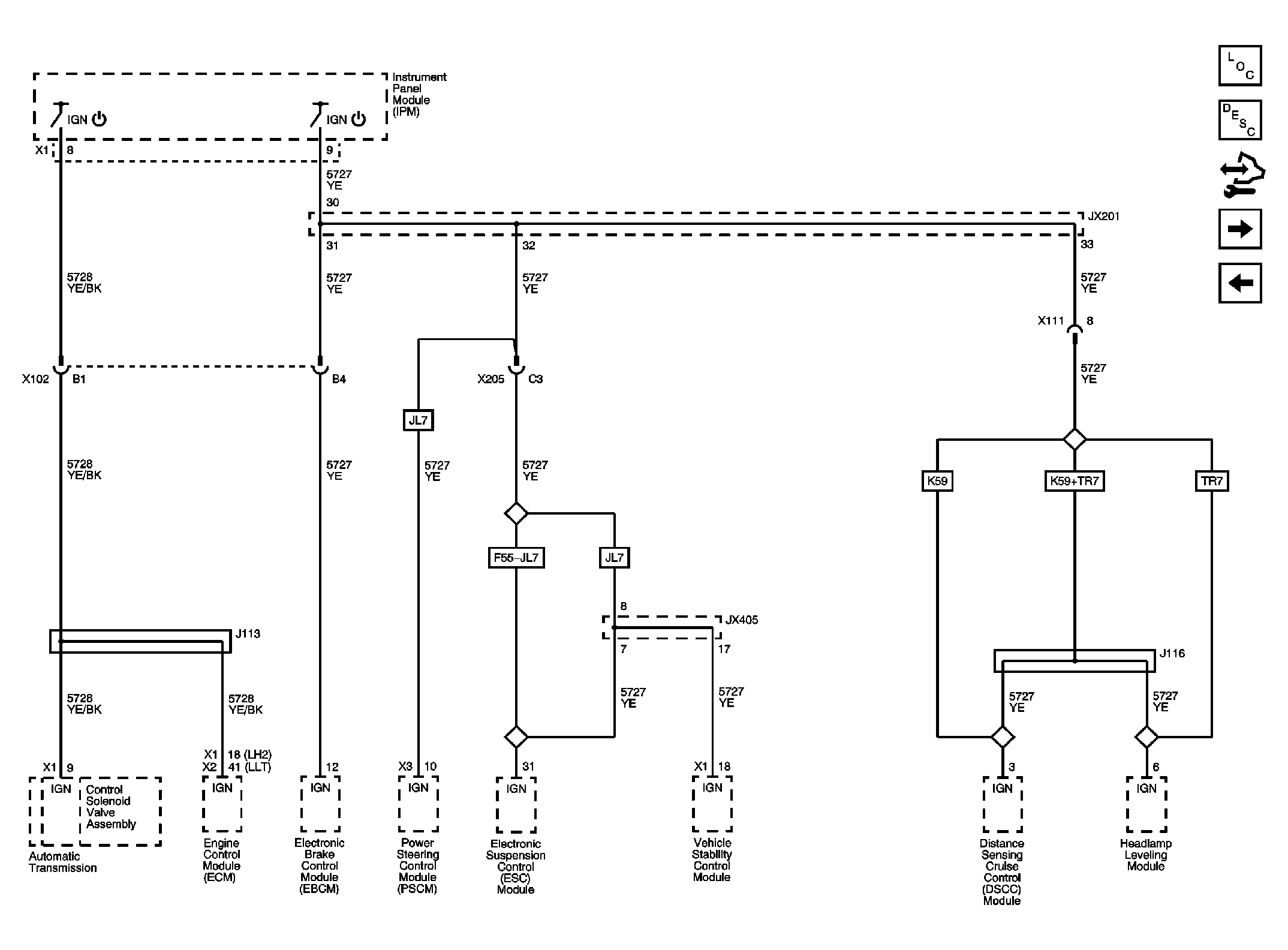

Fig 1: GMLAN - High Speed Serial Data Wake Up Wiring Schematic
