Cadillac
›
2011
›
STS AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Diagrams
›
Data Communication Wiring Schematics
›
Power, Ground, and Low Speed GMLAN Serial Data
Power, Ground, and Low Speed GMLAN Serial Data

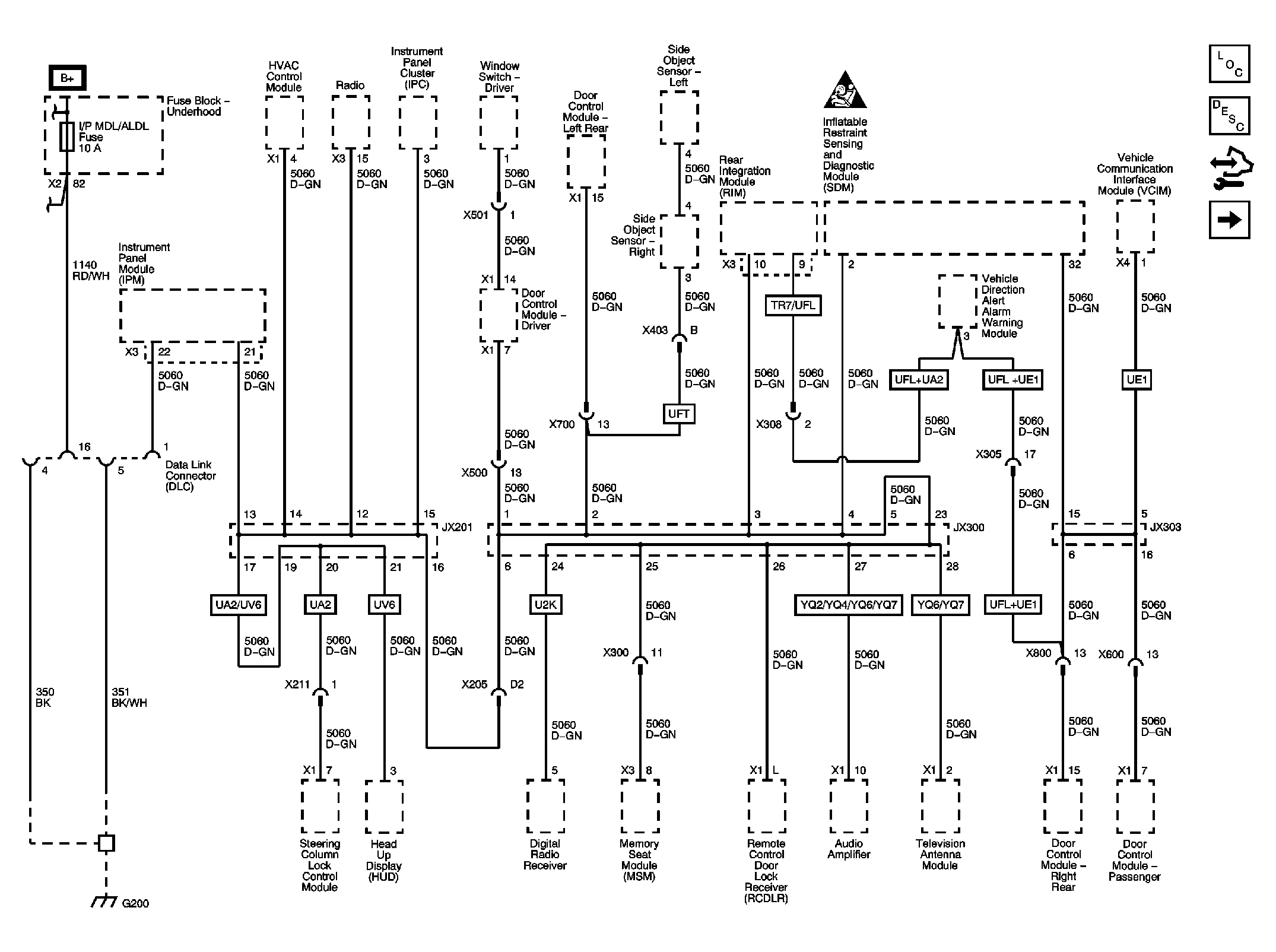

Fig 1: Power, Ground, and Low Speed GMLAN Serial Data Wiring Schematic
