Television Antenna Cable Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the rear of the headliner trim panel to access the antenna amplifiers. Refer to Headlining Trim Panel Replacement . |
|

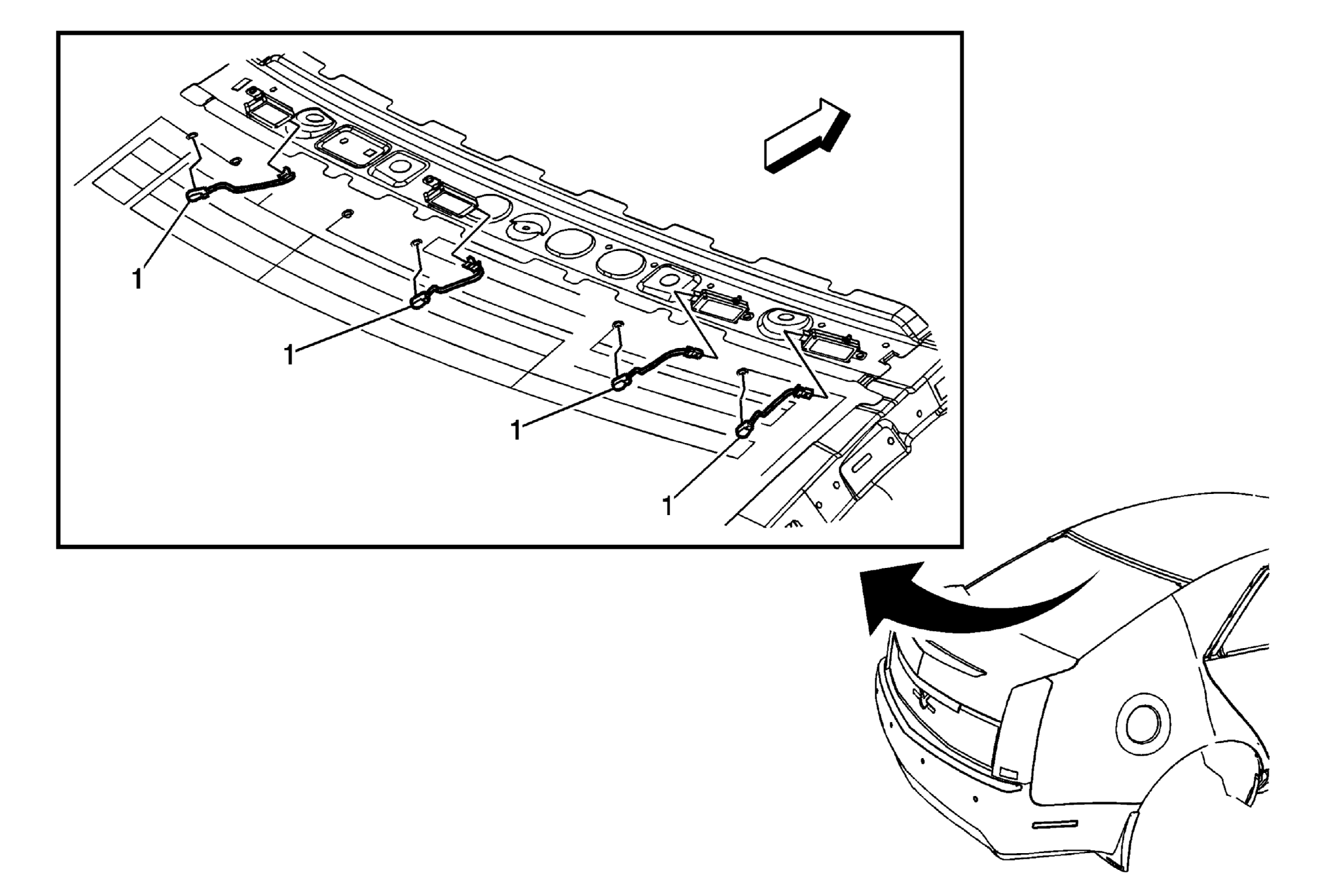

| 1 | Television Antenna Amplifier Cables Procedure: Disconnect the cables from the rear window grid and the antenna amplifiers. |
