Engine- Right Rear (LLT)

Component Name	Callout
Ignition Coil 5	1
Evaporative Emission (EVAP) Canister Purge Solenoid Valve	2
Ignition Coil 3	3
Ignition Coil 1	4
Knock Sensor (KS) 1	5
Engine Block-Heater Connector	6
Crankshaft Position (CKP) Sensor	7

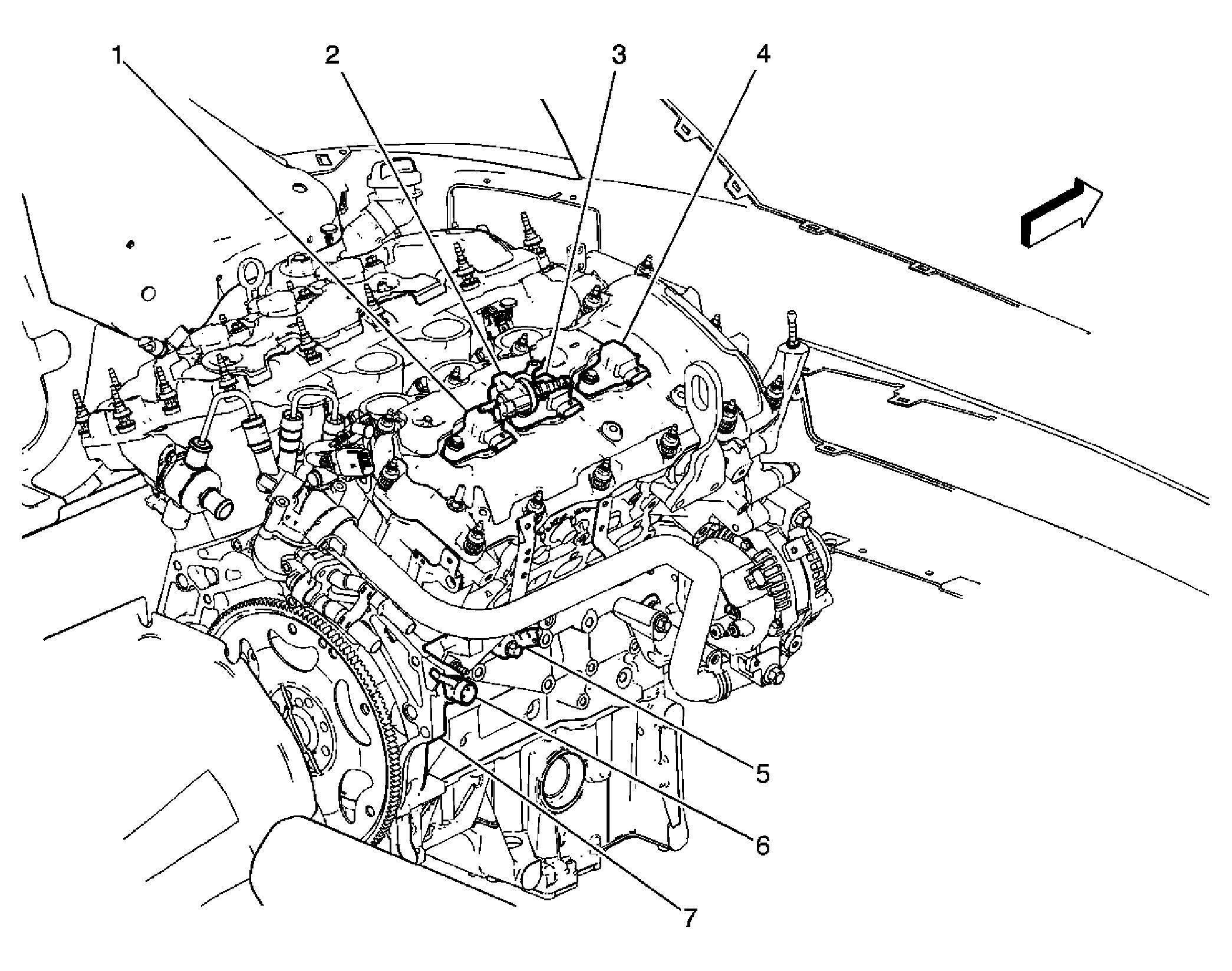

Fig 1: Engine-Right Rear Components (LLT)

Courtesy of GENERAL MOTORS COMPANY
