Installation Procedure

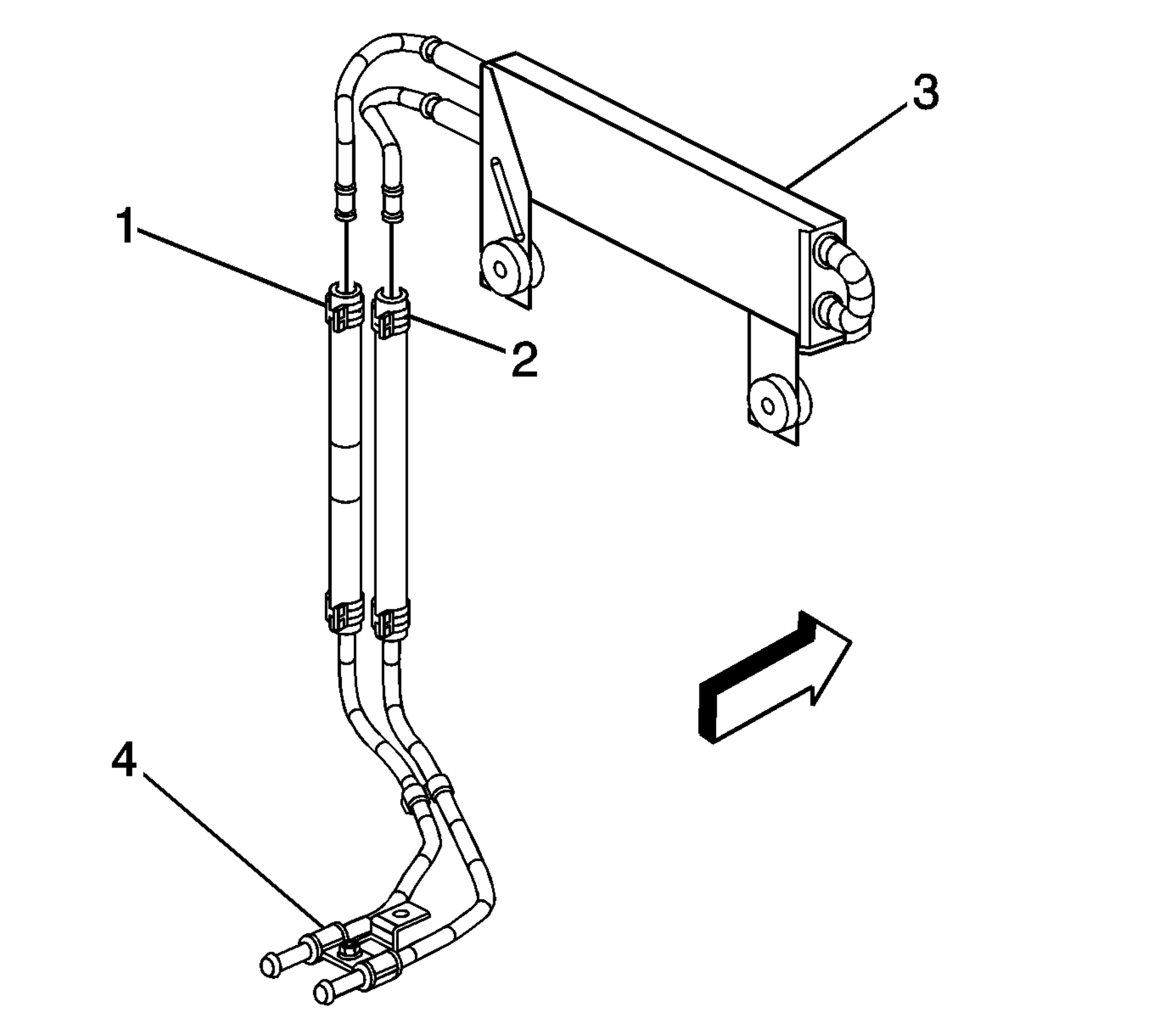

    Fig 1: Power Steering Cooler & Hoses
    GM2177005Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering cooler hoses (1, 2) in the vehicle.
  2. Install the power steering cooler hoses to the power steering cooler (3) with the hose clamps.
    3. Fig 2: View Of Power Steering Cooler Pipe/Hose-To-Frame Retaining Bolt
    GM1371689Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the power steering cooler hose to frame retaining bolt and tighten to 10 N.m (88 lb in).
    4. Fig 3: View Of Power Steering Cooler Pipe/Hose & Power Steering Lines
    GM1371691Courtesy of GENERAL MOTORS COMPANY
  4. Install the power steering cooler hoses to the power steering hoses with the hose clamps.
  5. Install the front air deflector. Refer to Front Air Deflector Replacement .
  6. Lower the vehicle.
  7. Remove the drain pan from under the vehicle.
  8. Bleed the power steering system. Refer to Power Steering System Bleeding .
