Internal Components

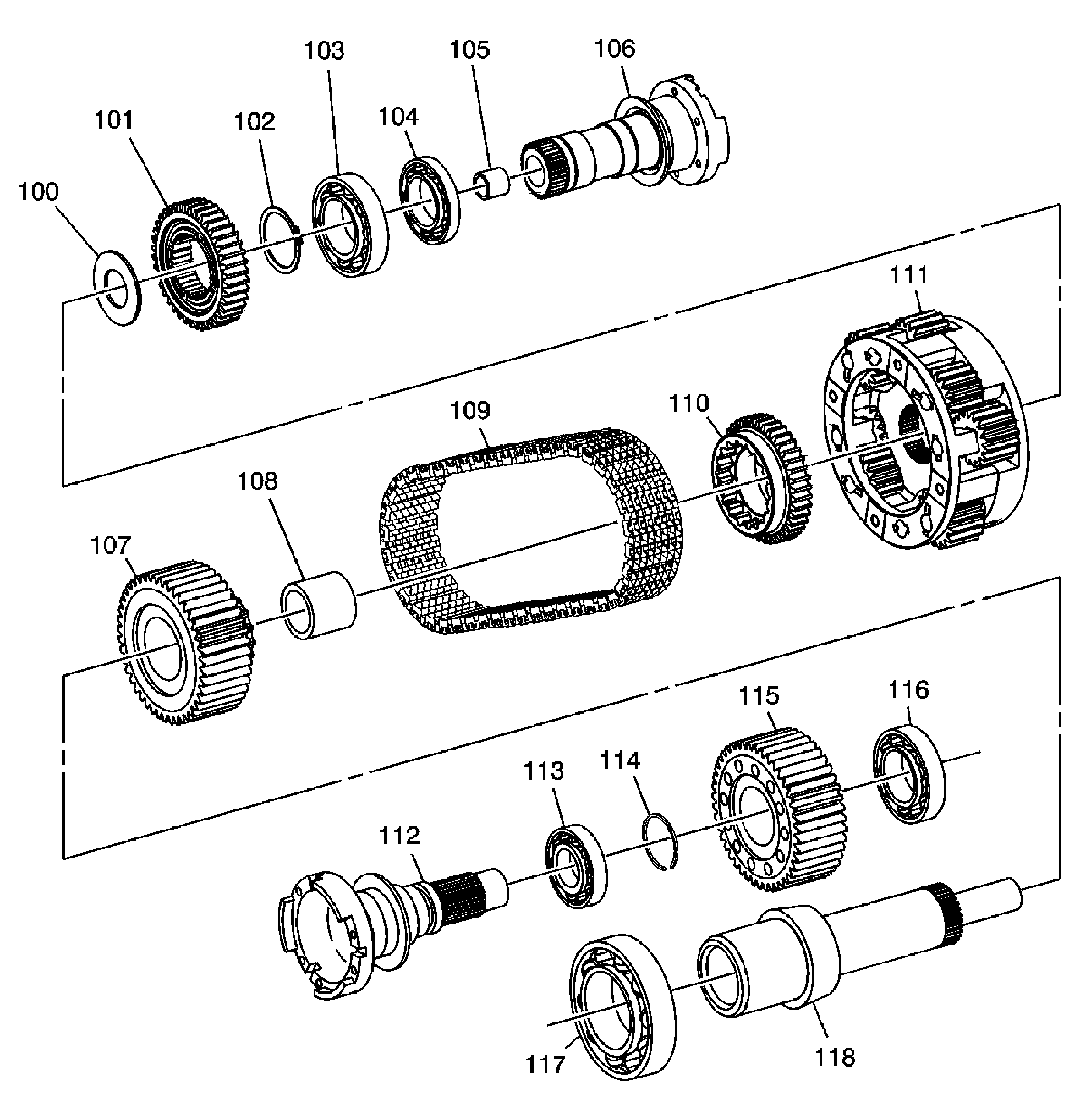

Fig 1: Transfer Case Internal Components Disassembled View

GM912882

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
100	Thrust Washer
101	Rear Sun Gear
102	Rear Output Shaft Snap Ring
103	Rear Output Shaft Bearing
104	Rear Output Shaft Bearing
105	Rear Output Shaft Bushing
106	Rear Output Shaft
107	Upper Sprocket
108	Upper Sprocket Bushing
109	Chain
110	Front Sun Gear
111	Carrier
112	Front Output Shaft
113	Front Output Shaft Bearing
114	Front Output Shaft Snap Ring
115	Lower Sprocket
116	Front Output Shaft Bearing
117	Input Shaft Bearing
118	Input Shaft
