Removal Procedure

  1. Remove the instrument panel (I/P) compartment. Refer to Instrument Panel Compartment Replacement .

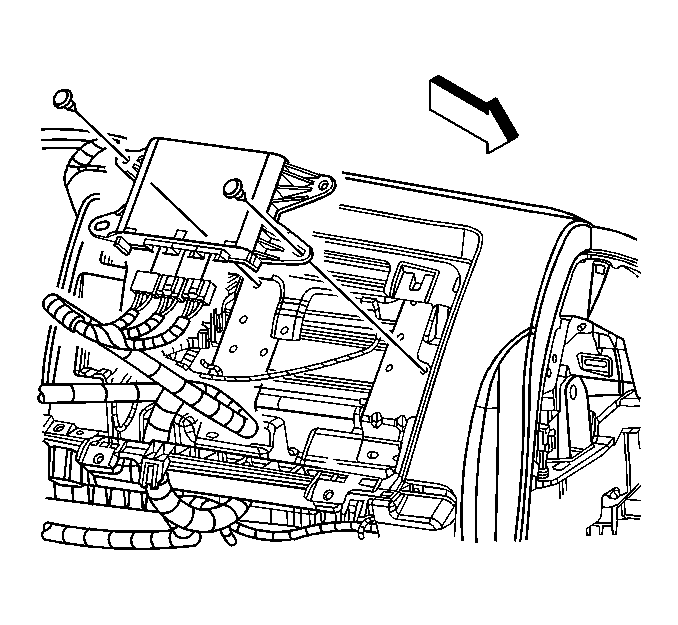

    2. Fig 1: View Of Dash Integration Module
    GM1466495Courtesy of GENERAL MOTORS COMPANY
  2. Remove the screws securing the body control module to the module bracket.
  3. Disconnect the electrical connectors.
