Removal Procedure

  1. Remove the knee bolster. Refer to Driver Knee Bolster Bracket Replacement .

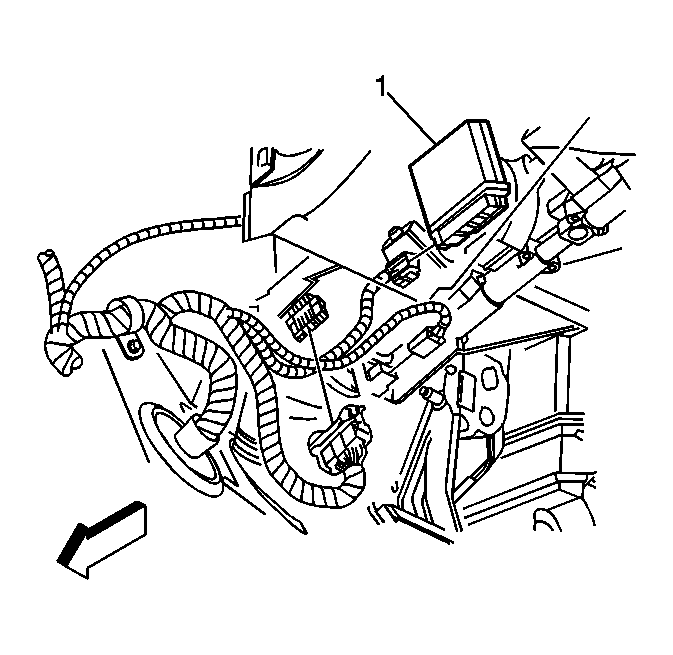

    2. Fig 1: View Of Steering Column Module
    GM617895Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the electrical connectors to the steering column module (1).
  3. Loosen the retaining screw on the steering column control module. Slide the control module out of the retaining bracket.
