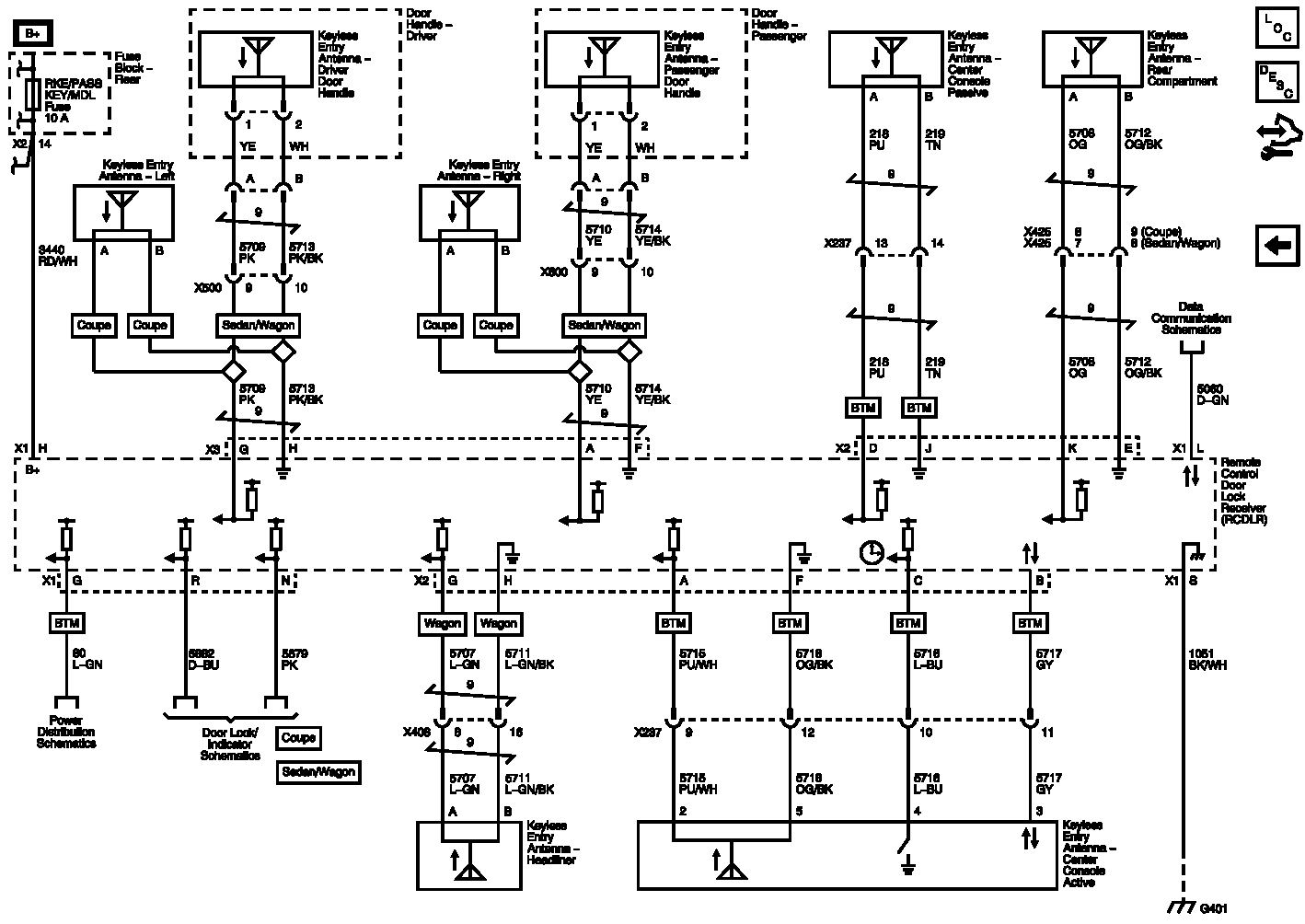

Home › Cadillac › 2012 › CTS Base, 2D Coupe, AWD › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Wiring Schematics › Remote Function Wiring Schematics › Easy Keyless Entry (ATH)
