HVAC Components (RHD)

Component Name	Callout
Ambient Air Quality Sensor	1
Mode Actuator	2
Air Temperature Actuator- Right	3
Evaporator Temperature Sensor	4
Air Temperature Actuator- Left	5
Blower Motor Control Module	6
Recirculation Actuator	7
Blower Motor	8

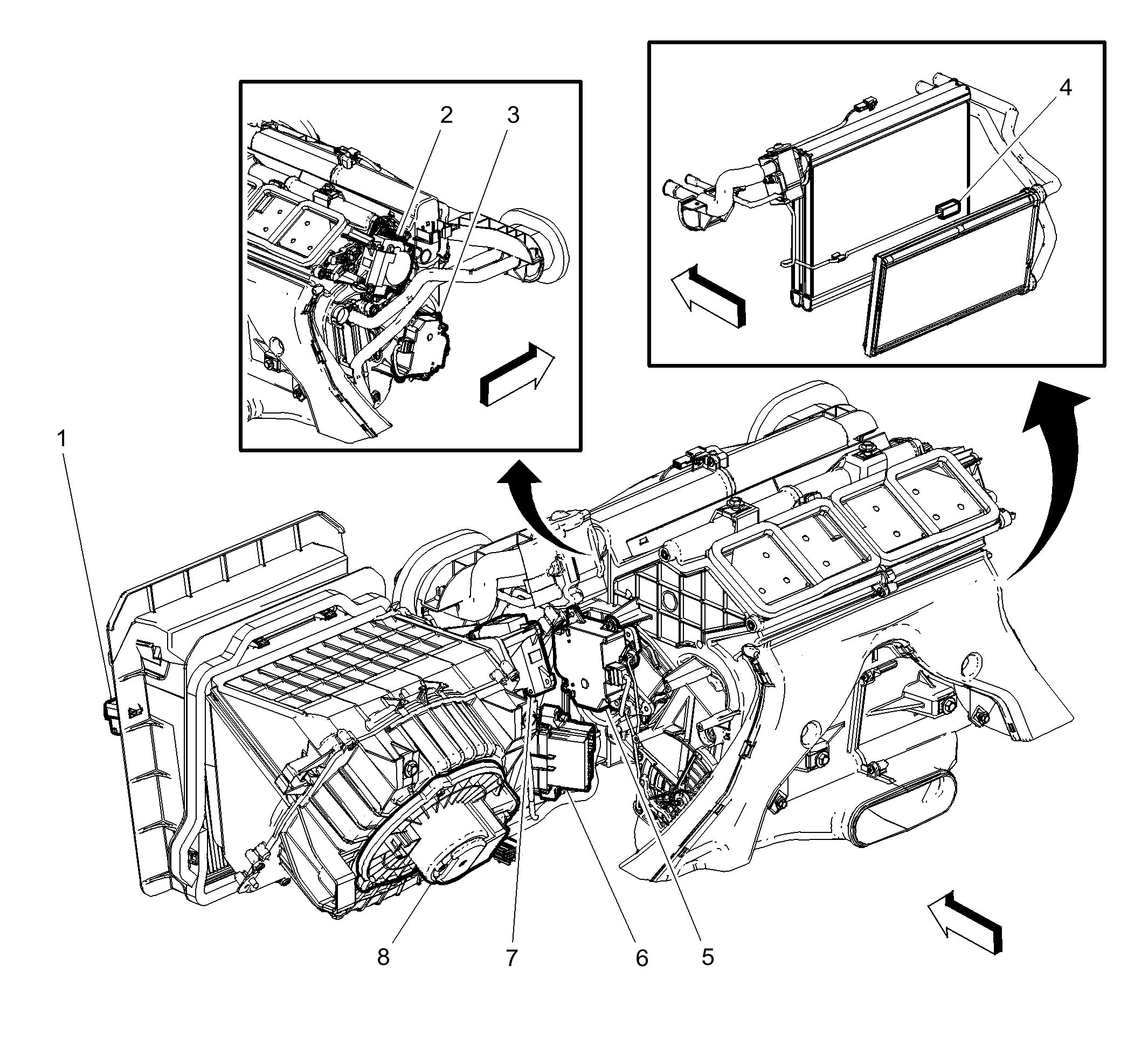

Fig 1: HVAC Components (RHD)

Courtesy of GENERAL MOTORS COMPANY
