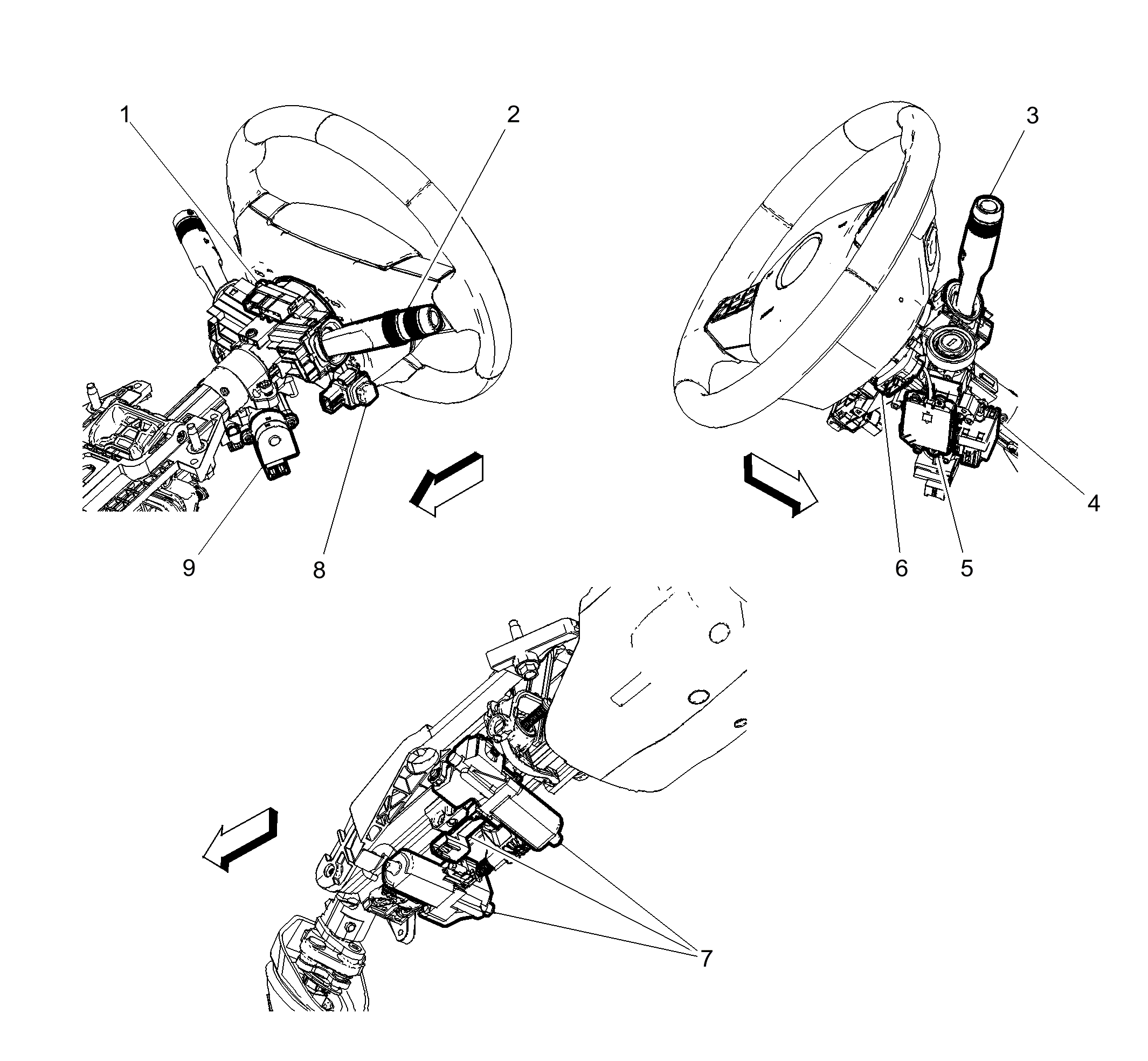

Steering Column Components
Steering Column Components
| Component Name | Callout |
|---|---|
| Inflatable Restraint Steering Wheel Coil | 1 |
| Turn Signal / Multifunction Switch | 2 |
| Windshield Wiper / Washer Switch | 3 |
| Ignition Lock Cylinder Control Actuator | 4 |
| Theft Deterrent Module (without BTM) | 5 |
| Steering Wheel Position Sensor | 6 |
| Steering Wheel / Column Tilt / Telescope Actuator (N38) | 7 |
| Steering Wheel Position Switch (N38) | 8 |
| Ignition Switch | 9 |
