Air Cleaner Element Replacement

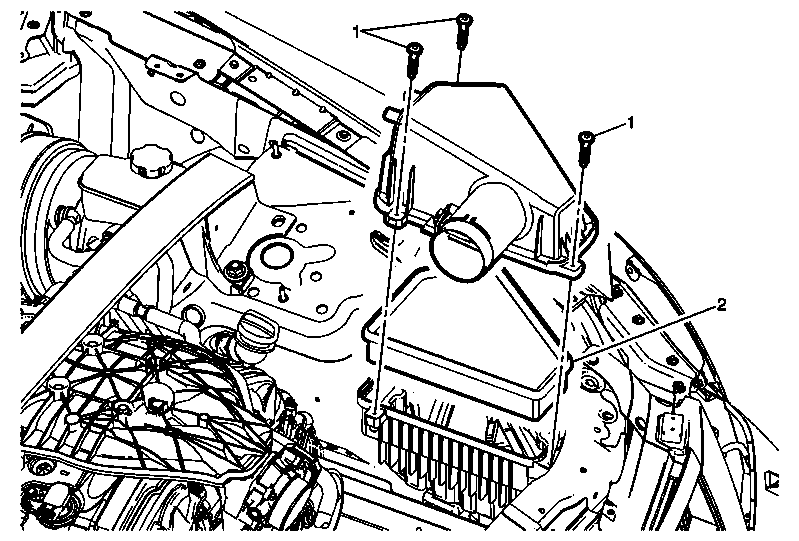

Fig 1: Air Cleaner Element & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Assembly Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Air Cleaner Element Procedure Reposition the surge tank bypass hose as necessary. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedures

Remove the sight shield. Refer to Front Compartment Side Sight Shield Replacement .
Disconnect the air cleaner duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Assembly Fastener (Qty: 3)

CAUTION:

Tighten
4 N.m (35 lb in)

Air Cleaner Element

Procedure
