Engine Coolant Temperature Sensor Replacement
Engine Coolant Temperature Sensor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Partially drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1, LLT,LFW or LFX) , Cooling System Draining and Filling (Static Fill LSA) , Cooling System Draining and Filling (GE 47716 LF1, LLT,LFW or LFX) , Cooling System Draining and Filling (GE 47716 LSA) . |
|

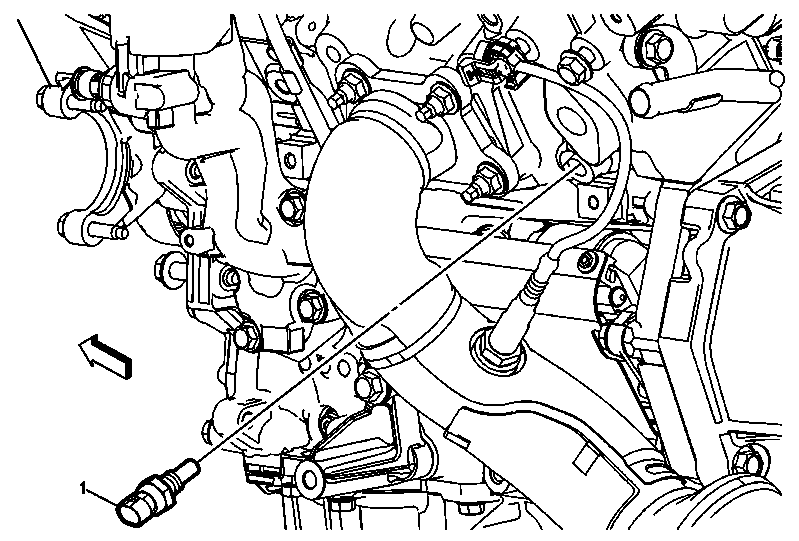

| 1 | Engine Coolant Temperature Sensor
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the ECT sensor harness connector. Tighten 20 N.m (35 lb ft) |
