High Speed GMLAN (LSA)
High Speed GMLAN (LSA)

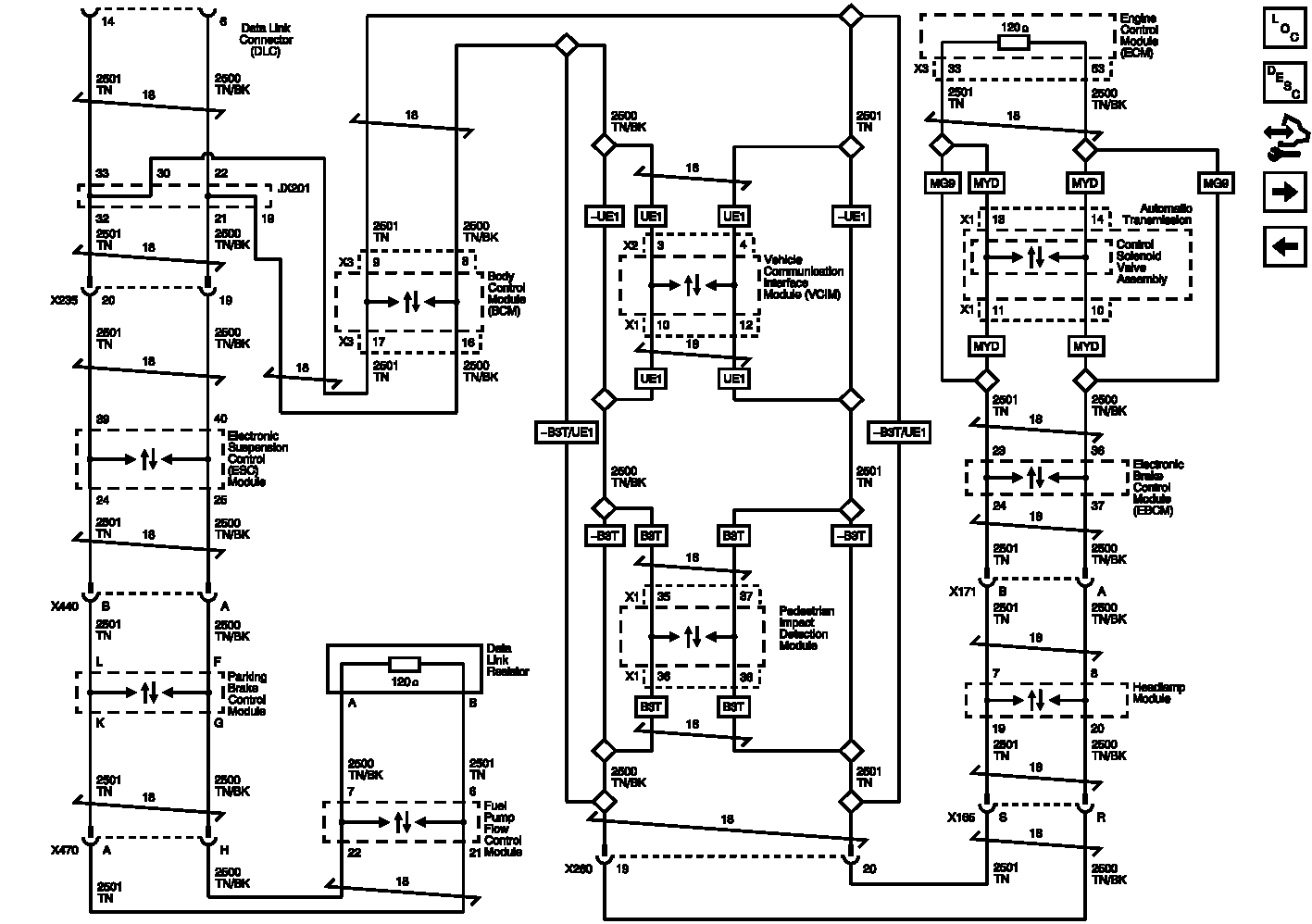

Fig 1: High Speed GMLAN Wiring Schematic (LSA)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
