Data Communication Wiring Schematics
›
Low Speed GMLAN
Low Speed GMLAN

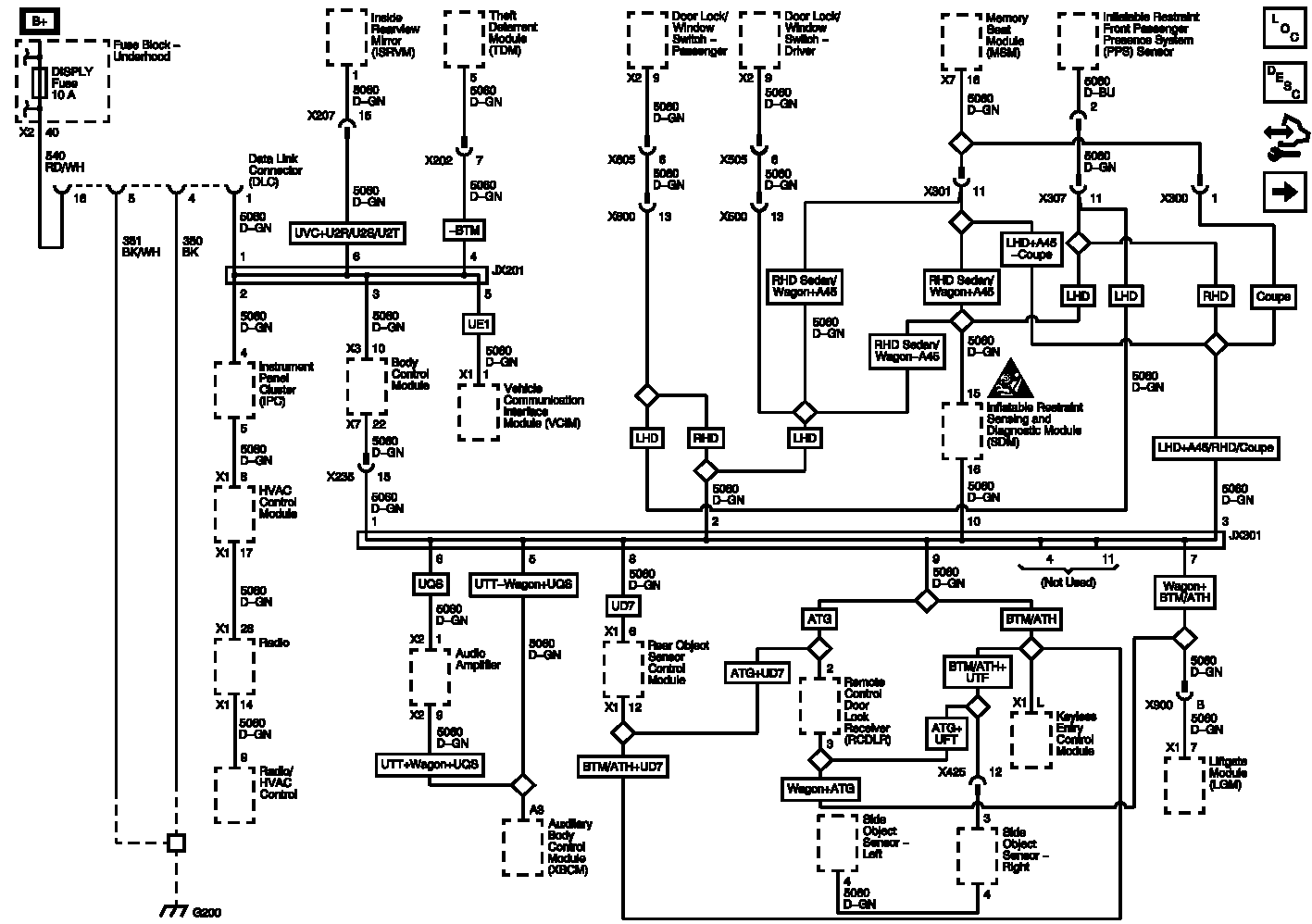

Fig 1: Low Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
