Air Cleaner Assembly Replacement

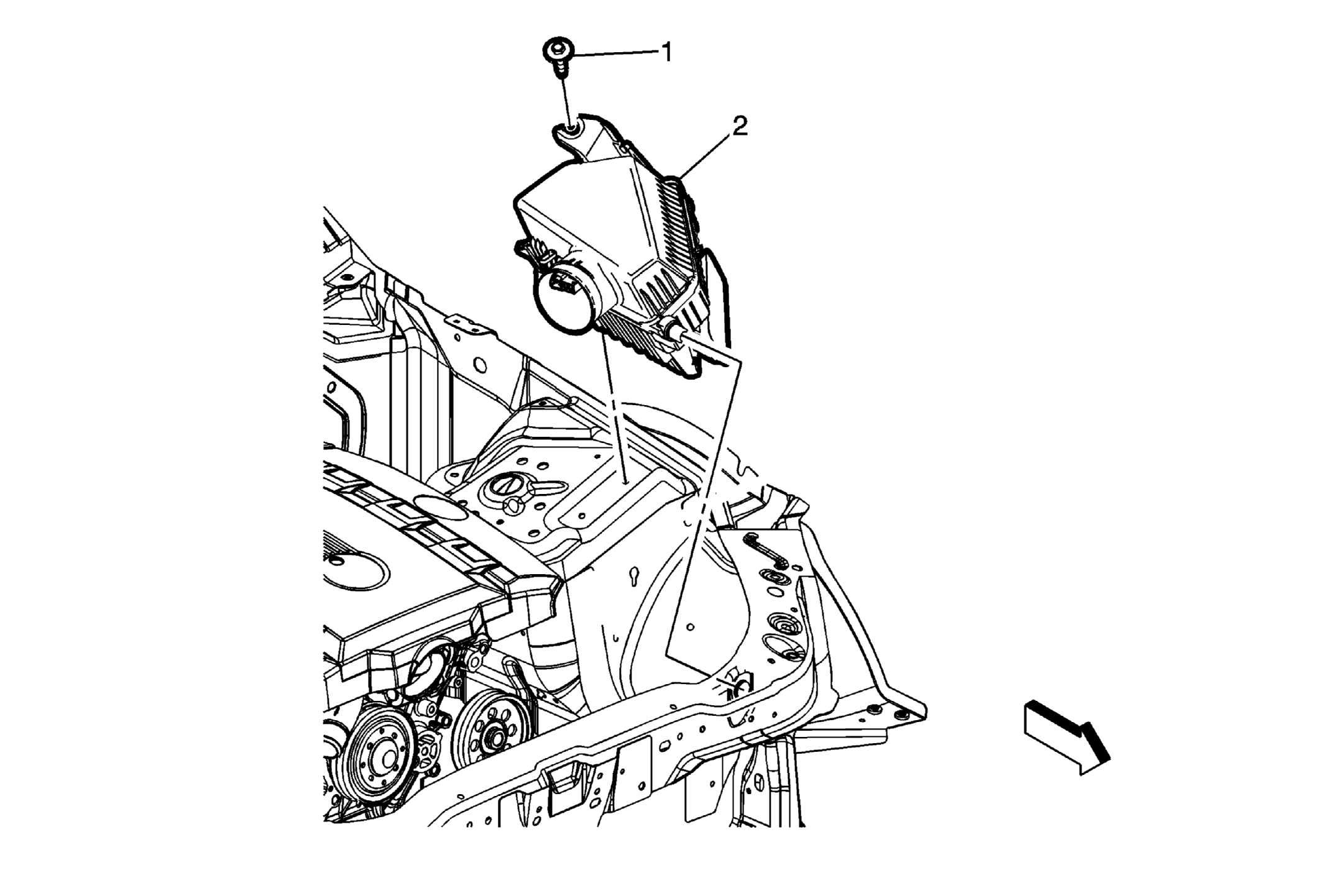

Fig 1: Air Cleaner Assembly & Fasteners

GM2524944

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly Replacement

Callout

Component Name

Preliminary Procedures

Remove the sight shield. Refer to Front Compartment Side Sight Shield Replacement .
Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
Disconnect the MAF/IAT sensor electrical connector.

1

Air Cleaner Assembly Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Air Cleaner Assembly

Procedure

Reposition the surge tank bypass hose as necessary.
Disconnect the electrical connectors.
Tilt the assembly rear upward while disengaging the air cleaner isolator.
