Assist Step Rear Bracket Replacement

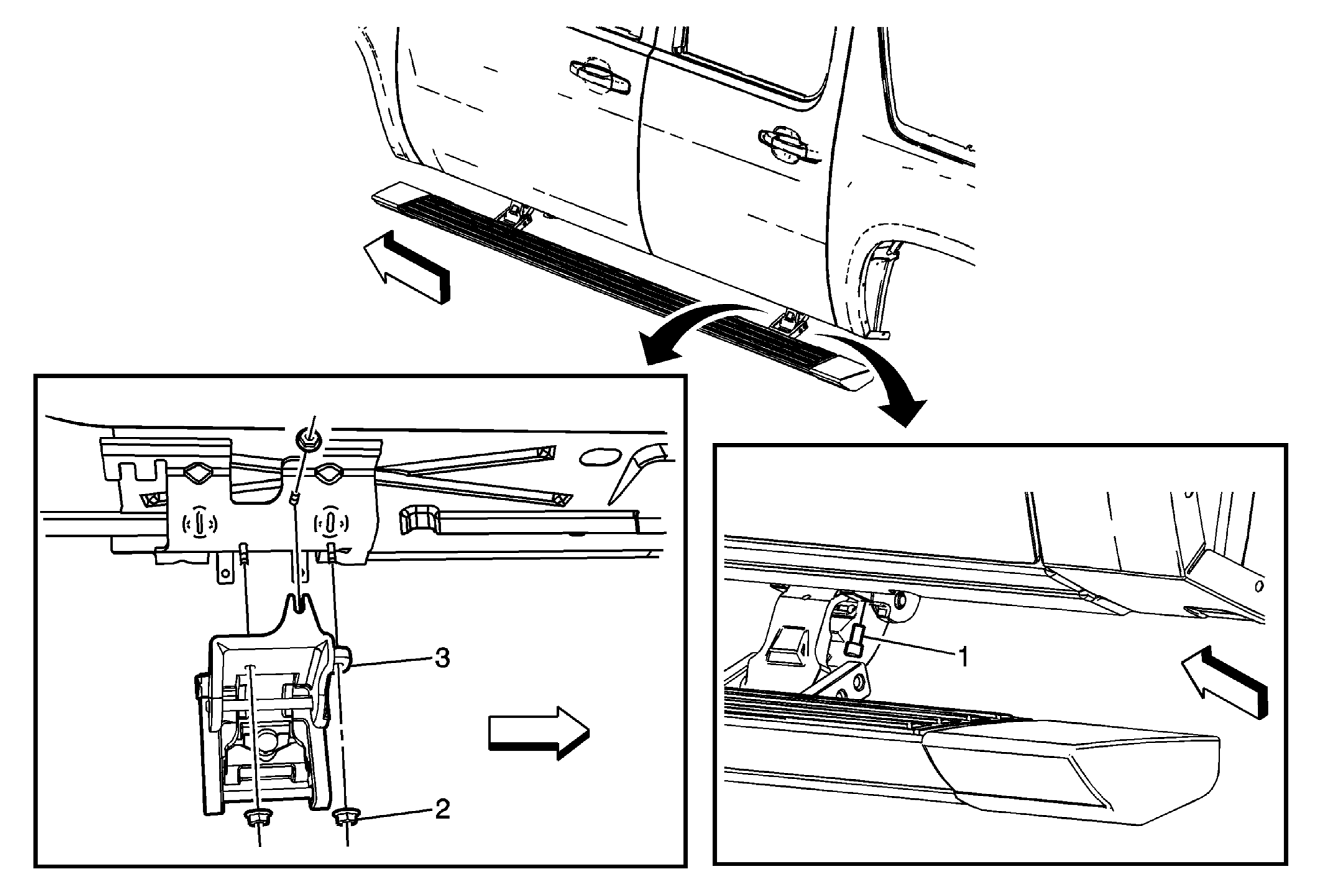

Fig 1: View Of Power Assist Step Rear Bracket, Rear Bracket Nuts & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Deploy and support the power assist step. Use a grease pencil to outline the location of the power assist step rear bracket location on the power assist step. Remove the power assist rear bracket to power assist step bolts. Refer to Assist Step Replacement (GMC Denali XL) , Assist Step Replacement (Chevrolet HP2) , Assist Step Replacement (Power BRS) , Assist Step Replacement (Z71)
1	Power Assist Step Rear Bracket Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Power Assist Step Rear Bracket Nuts (Qty: 3) Tighten 10 N.m (89 lb in)
3	Power Assist Step Rear Bracket
