Steering Linkage Shield Replacement

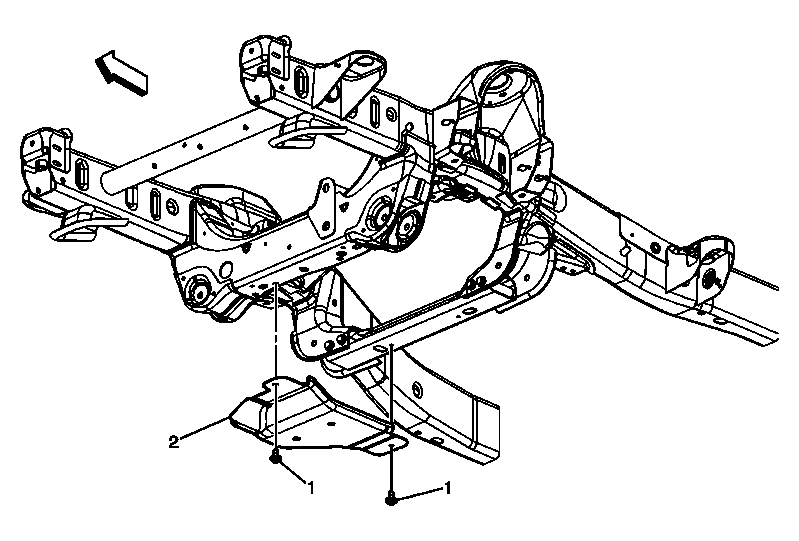

Fig 1: View Of Steering Linkage Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Steering Linkage Shield Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Steering Linkage Shield
