Installation Procedure

Install the park brake cable guide to the park brake cable.
Install the park brake cable guide.

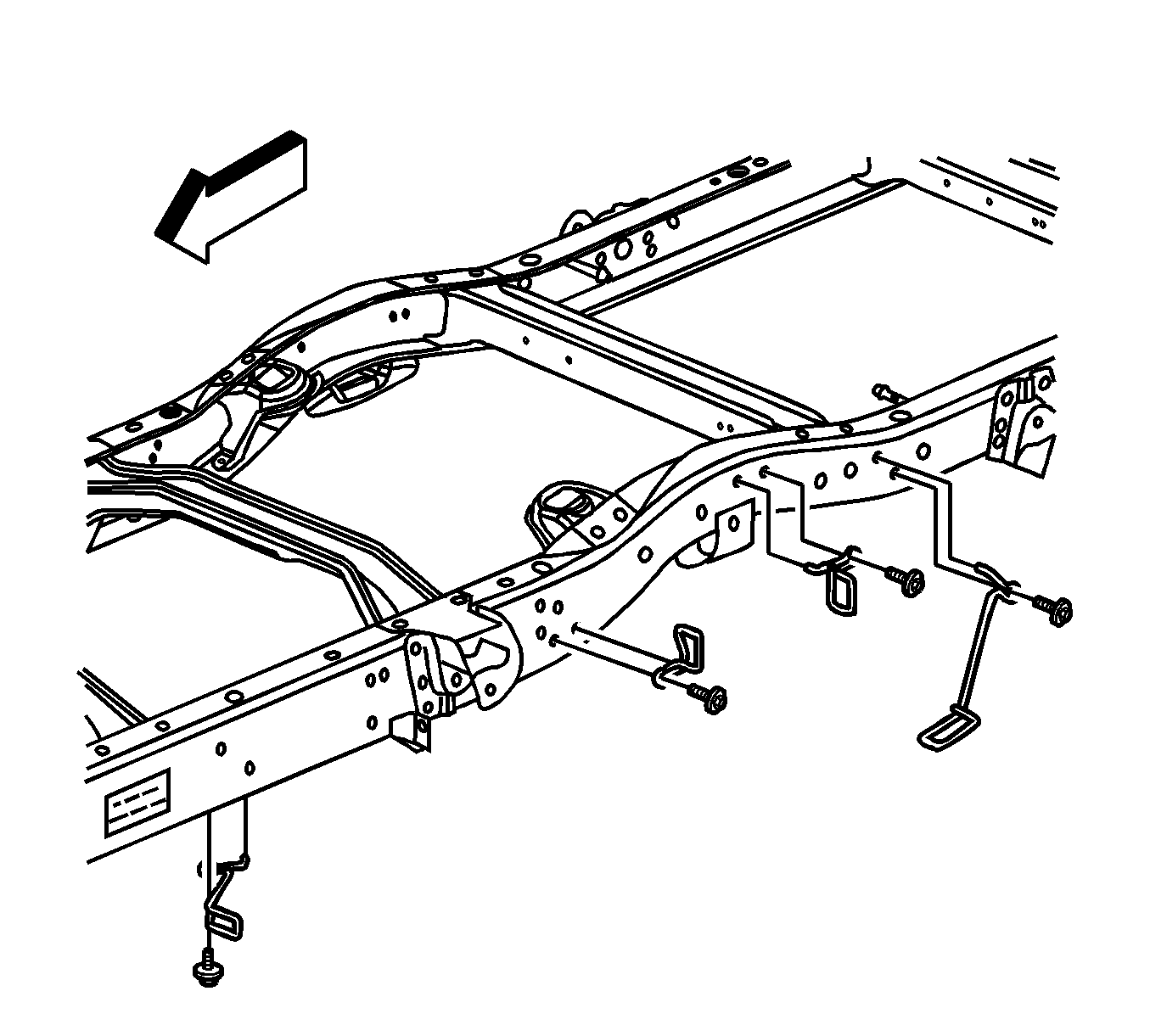

Fig 1: View Of Park Brake Cable Guide Bolt (Cutaway Vehicle)

GM1208291

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the park brake cable guide bolt to the frame and tighten to 12 N.m (106 lb in).
Lower the vehicle.
