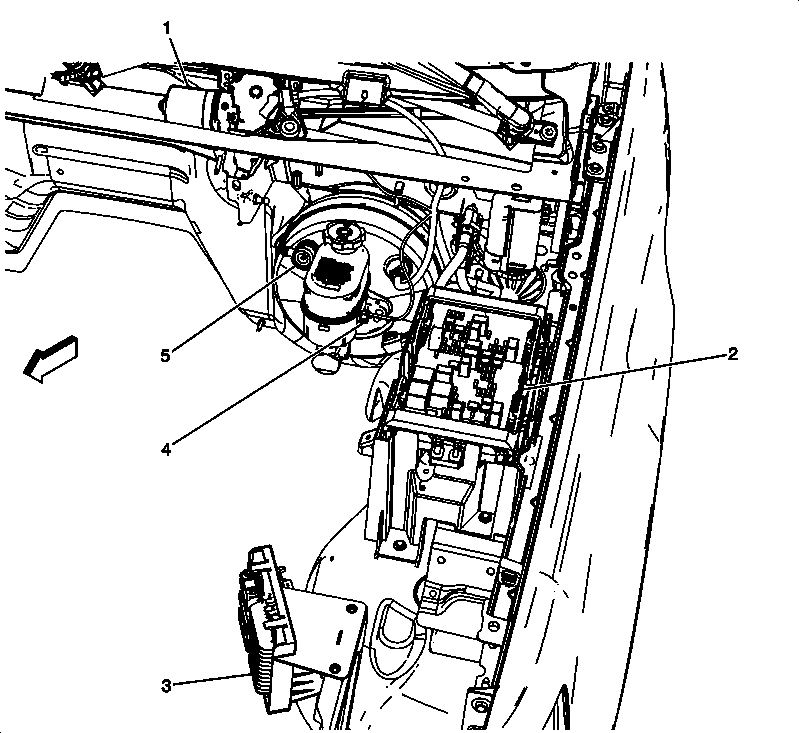

Left Side of Engine Compartment Components
Left Side of Engine Compartment Components
| Component Name |
Callout |
| Windshield Wiper Motor |
1 |
| Fuse Block- Underhood |
2 |
| Engine Control Module (ECM) |
3 |
| Brake Fluid Level Switch |
4 |
| Brake Booster Vacuum Sensor (JD9) |
5 |
Courtesy of GENERAL MOTORS COMPANY
