Data Communication Wiring Schematics
›
High Speed Bus (2 of 2) Wiring Schematics
High Speed Bus (2 of 2) Wiring Schematics

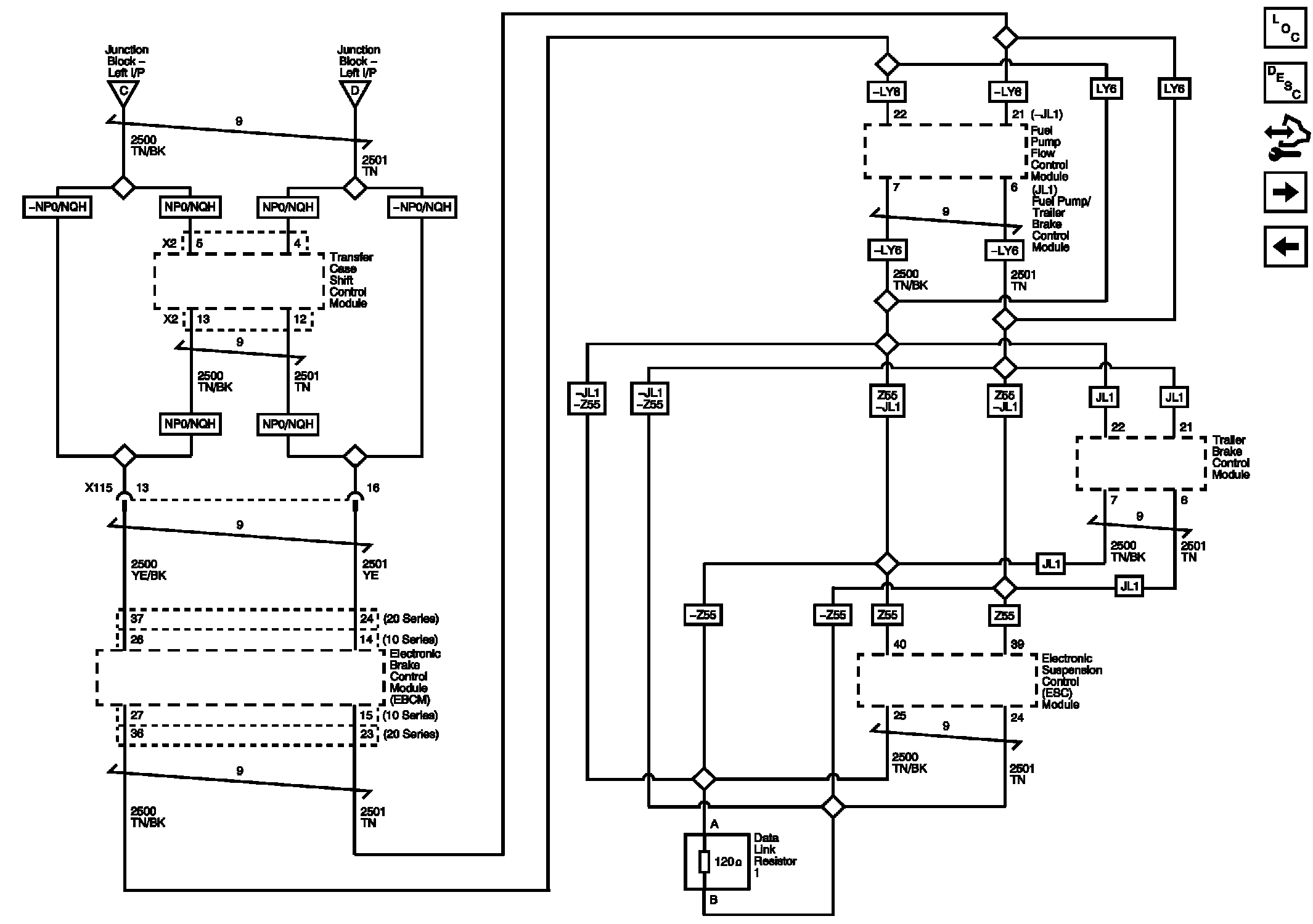

Fig 1: High Speed Bus (2 of 2) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
