Engine Splash Shield Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

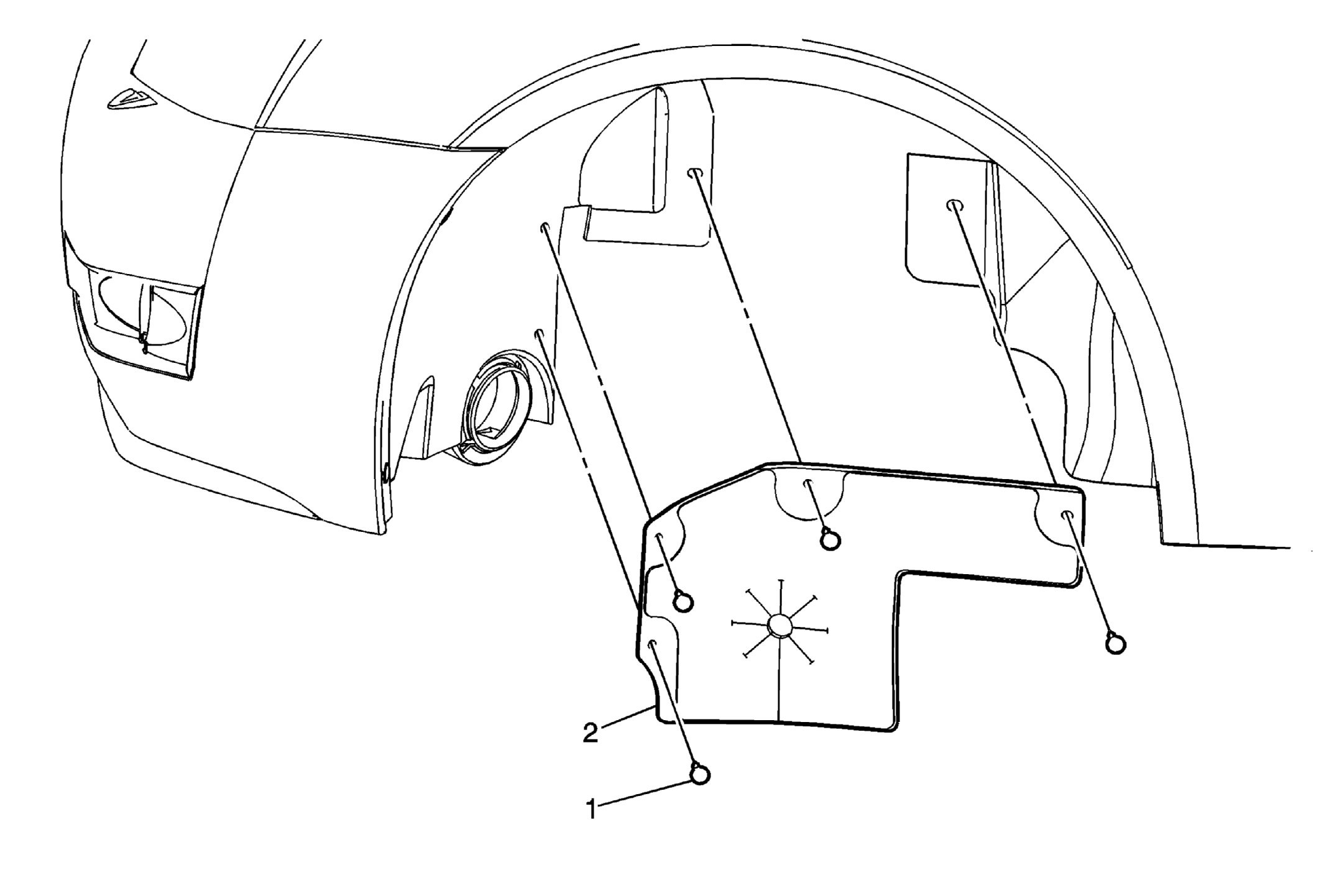

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Engine Splash Shield Plastic Retainer (Qty: 4) |
| 2 | Engine Splash Shield |
