Front Floor Console Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

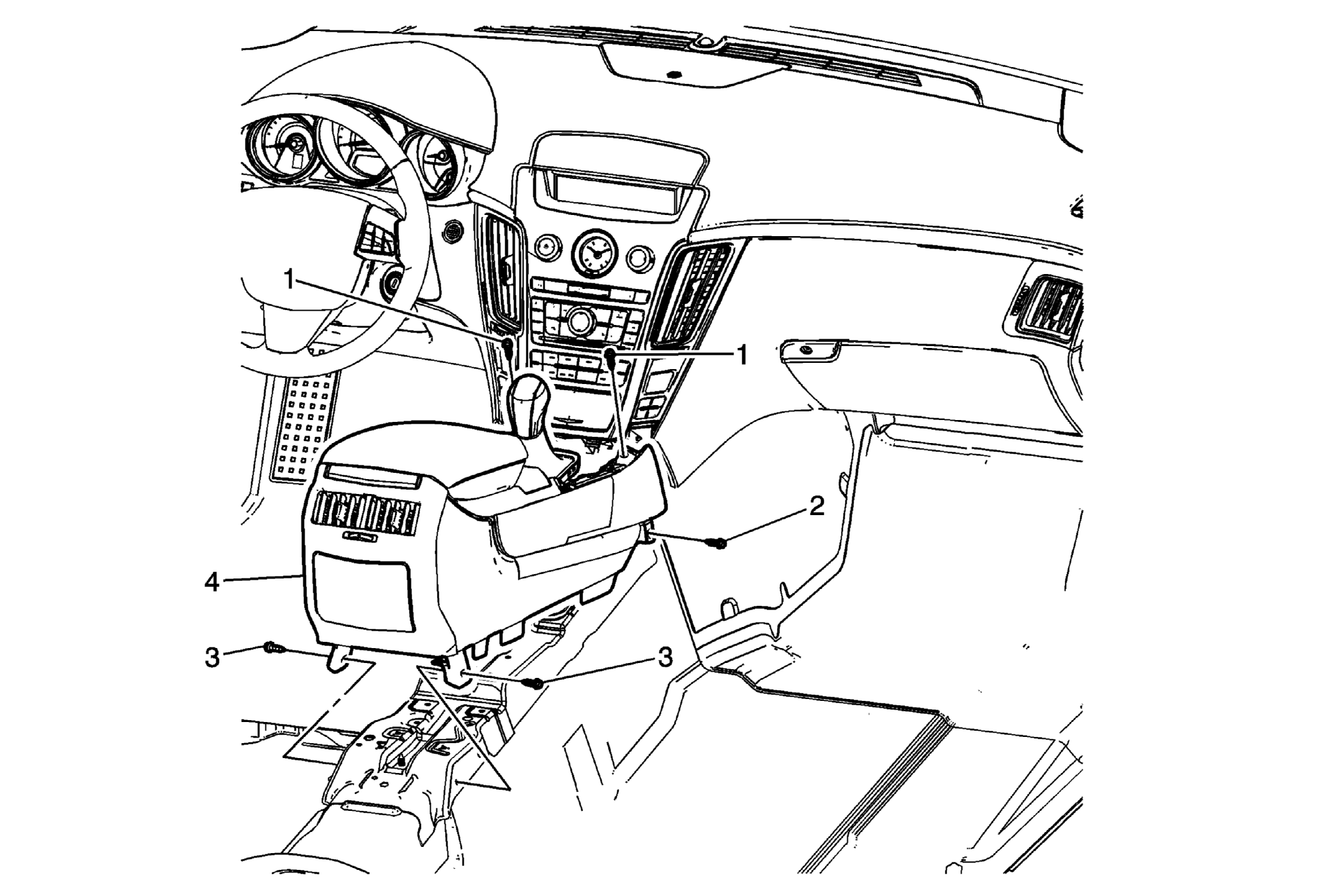

Fig 1: Front Floor Console Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the left and right front floor console appliques. Refer to Front Floor Console Applique Replacement . Remove the front floor console transmission shifter trim plate assembly. Refer to Front Floor Console Transmission Shift Opening Trim Plate Replacement (Automatic Transmission) or Front Floor Console Transmission Shift Opening Trim Plate Replacement (Manual Transmission) .
1	Front Floor Console Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Front Floor Console Screw (Qty: 2) Procedure Move the front seats to the full rear position. Pull the carpet way from the console assembly to expose the front lower console screws. Tighten: 2.5 N.m (22 lb in)
3	Front Floor Console Screw (Qty: 2) Procedure Move the front seats to the full forward position. Pull the carpet way from the console assembly to expose the rear lower console screws. Tighten: 2.5 N.m (22 lb in)
4	Front Floor Console Armrest Assembly Procedure Disconnect the electrical connections. When replacing the front floor console assembly, transfer all necessary components.
