Roof Console Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

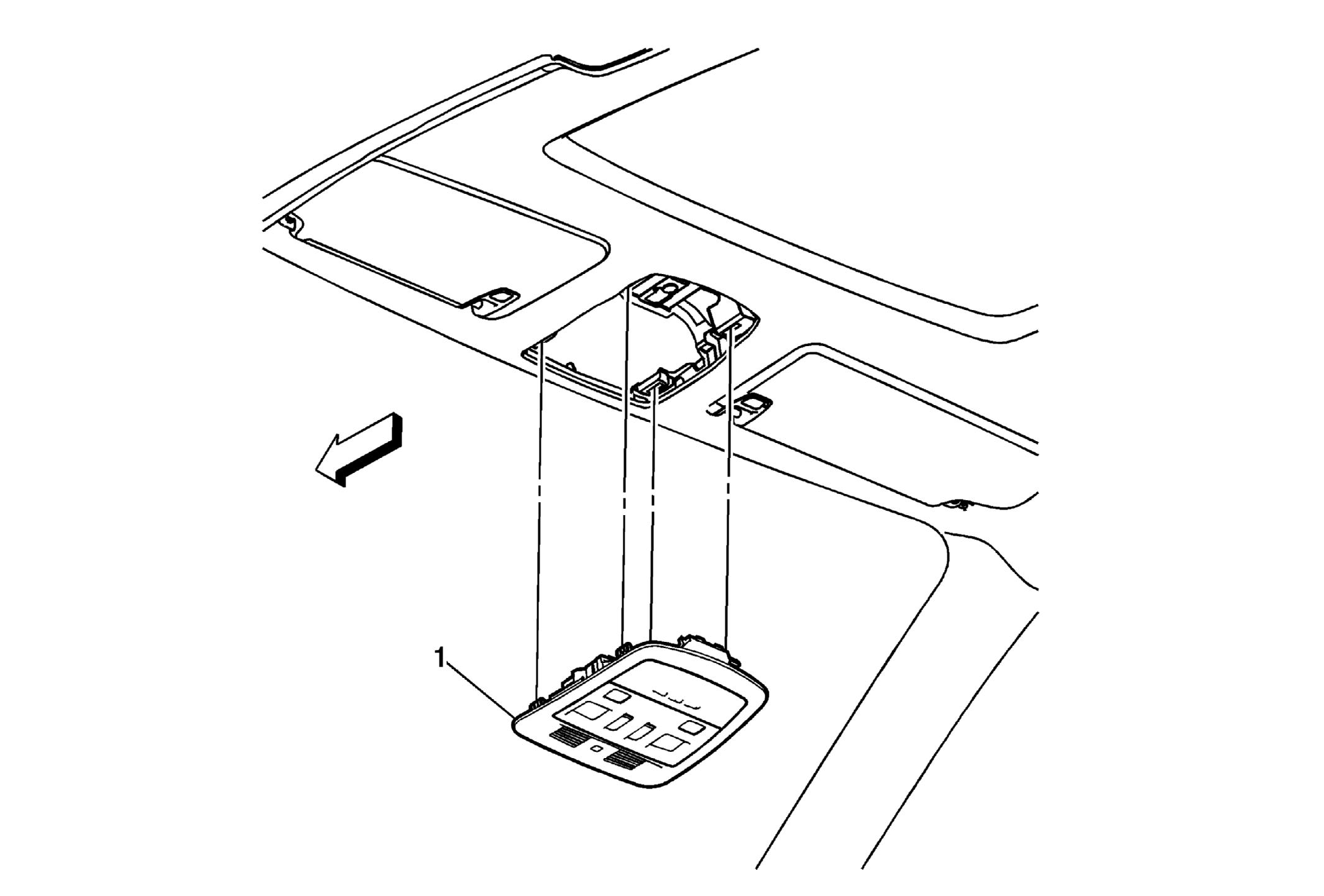

| Callout |
Component Name |
| 1 |
Front Roof Console Assembly Procedure
- Grasp the overhead console and pull downward disengaging the retainer clips securing it to the vehicle.
- Disconnect the electrical connections.
- When replacing the front roof console assembly, transfer all necessary components.
|
