Windshield Outside Moisture Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

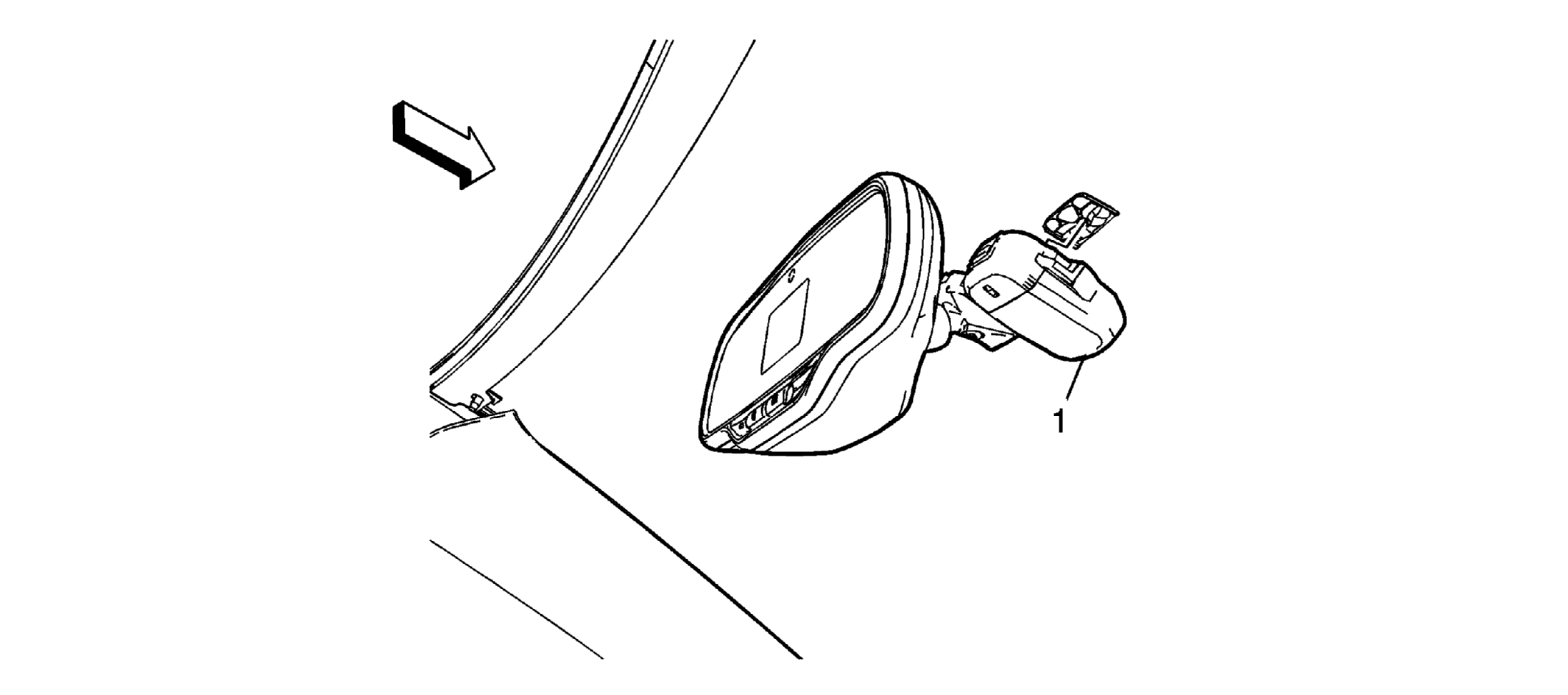

Fig 1: Windshield Outside Moisture Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Slide upward the plastic mirror harness cover. Disconnect the electrical connector at the top side of the windshield outside moisture sensor.
2	Windshield Outside Moisture Sensor Assembly Procedure Pinch the tabs on both outer edges of the moisture sensor. Push the sensor upward from the windshield base. Remove the sensor from the vehicle.

Callout

Component Name

Preliminary Procedure

Slide upward the plastic mirror harness cover.
Disconnect the electrical connector at the top side of the windshield outside moisture sensor.

Windshield Outside Moisture Sensor Assembly

Procedure

Pinch the tabs on both outer edges of the moisture sensor.
Push the sensor upward from the windshield base.
Remove the sensor from the vehicle.
