Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

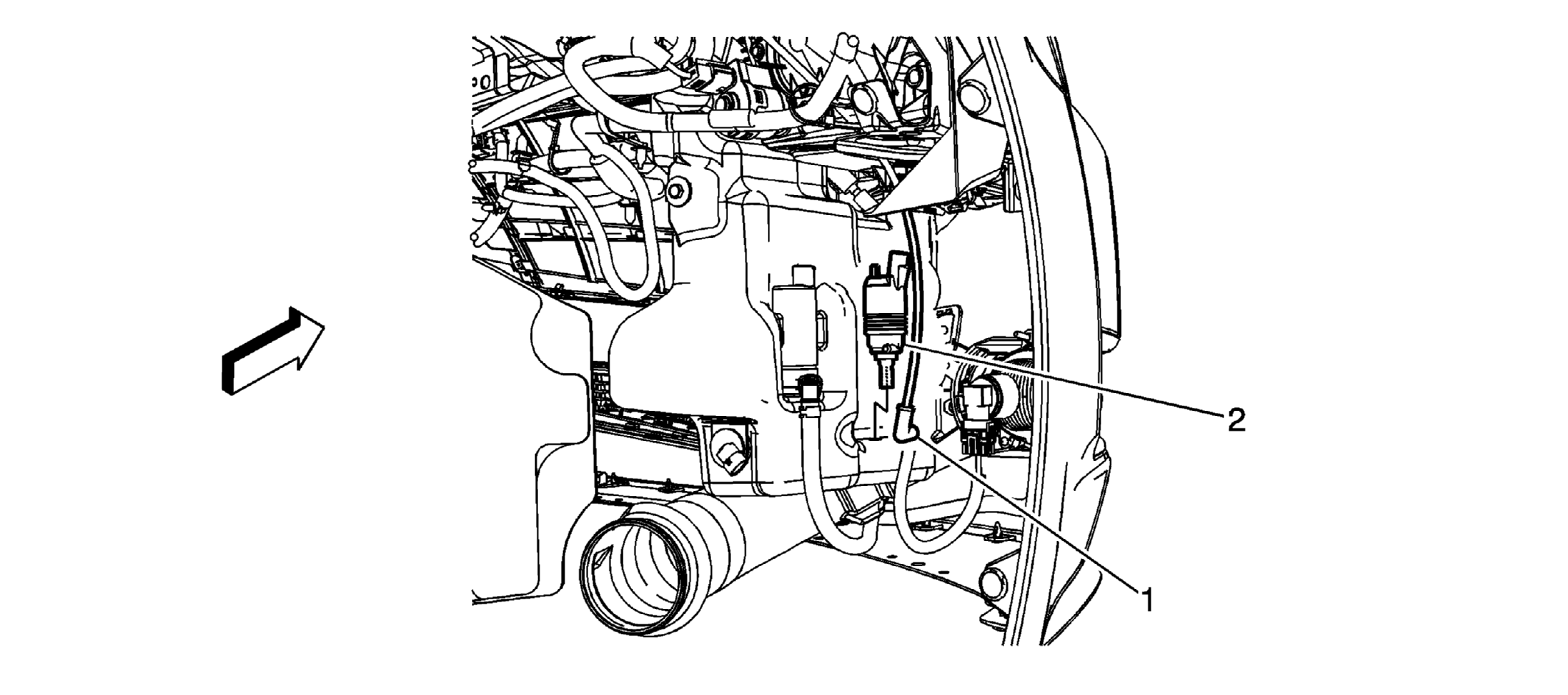

Fig 1: Windshield Washer Pump Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the right front wheelhouse extension. Refer to Wheelhouse Extension Replacement .
1	Windshield Washer Hose Procedure Place a clean suitable clean container under the washer container to secure spillage when removing the pump from the windshield washer solvent container. Remove the washer hose from the washer pump spout. Disconnect the electrical connection at the windshield washer pump.
2	Windshield Washer Pump Procedure Using two flat-bladed tools placed under the pump, gently pry upward in order to release the pump from the container grommet. Release and remove the pump and contain the windshield washer solvent. Discard the old windshield washer pump grommet.

Callout

Component Name

Preliminary Procedure:
Remove the right front wheelhouse extension. Refer to Wheelhouse Extension Replacement .

Windshield Washer Hose

Procedure

Place a clean suitable clean container under the washer container to secure spillage when removing the pump from the windshield washer solvent container.
Remove the washer hose from the washer pump spout.
Disconnect the electrical connection at the windshield washer pump.

Windshield Washer Pump

Procedure

Using two flat-bladed tools placed under the pump, gently pry upward in order to release the pump from the container grommet.
Release and remove the pump and contain the windshield washer solvent.
Discard the old windshield washer pump grommet.
