Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

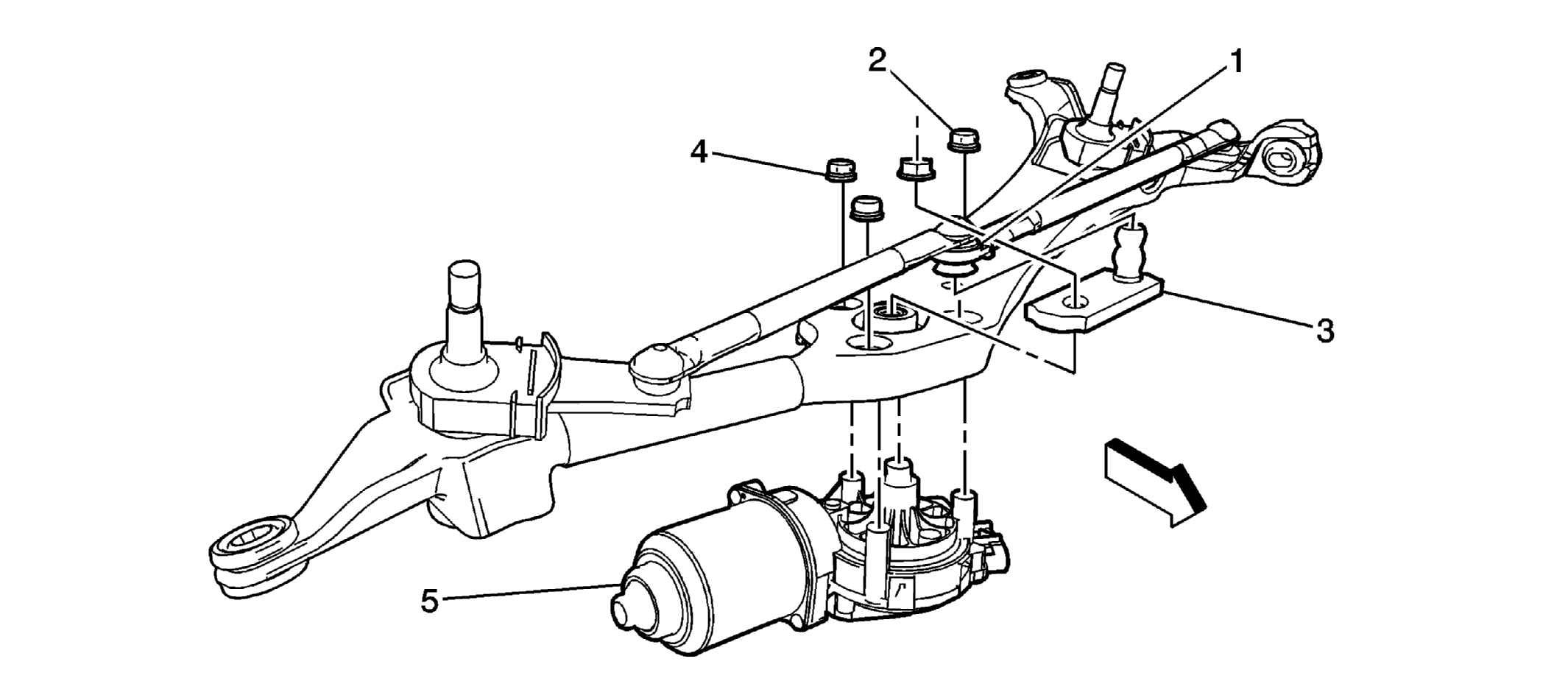

Fig 1: Windshield Wiper Motor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the windshield wiper transmission assembly. Refer to Windshield Wiper Transmission Replacement .
1	Transmission Drive Linkage Using a J 39232 or equivalent, disconnect the wiper linkage ball sockets from the wipers transmission linkage. Special Tools: J 39232 Wiper Linkage Separator
2	Windshield Wiper Crank Arm Nut NOTE: Refer to Fastener Notice . Procedure Secure the wiper motor to the wiper transmission. Loosely install the wiper crank arm to the motor pivot shaft. Secure the transmission linkage to the crank arm ball sockets. Use the J 39529 or equivalent. Align the transmission linkage parallel with the transmission assembly. Secure the crank arm nut. Tighten: 32 N.m (24 lb ft) Special Tools: J 39529 Wiper Linkage Installer
3	Windshield Wiper Crank Arm
4	Windshield Wiper Motor Bolt (Qty: 3) Tighten: 10 N.m (89 lb ft)
5	Windshield Wiper Motor Tip: The new wiper motor will come pre-timed from the factory. Do not electrically charge the new motor unless the old motor is being re-installed.
