Object Detection Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

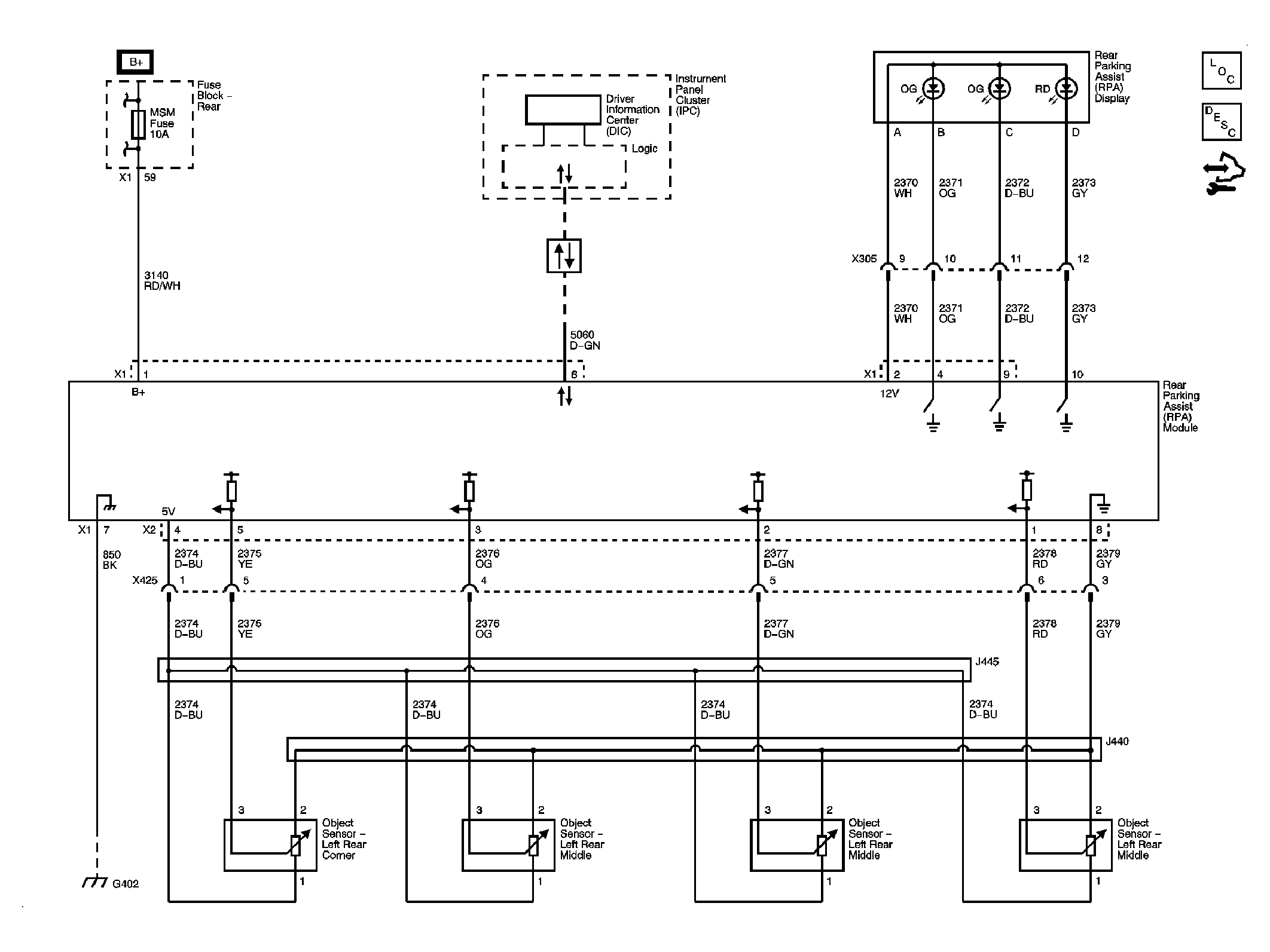

Fig 1: Object Detection Schematic

Courtesy of GENERAL MOTORS CORP.

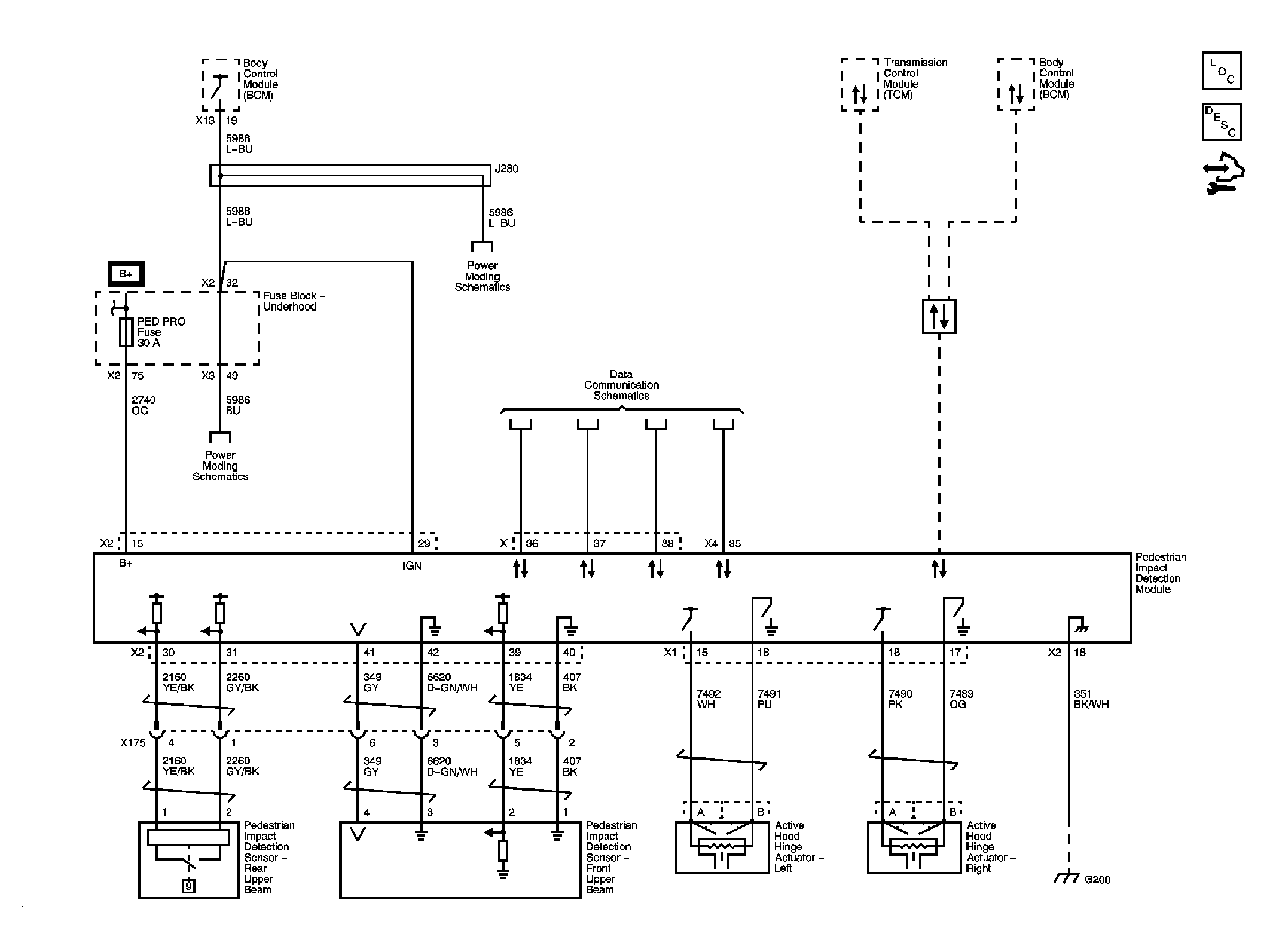

Fig 2: Pedestrian Impact Detection Schematic

Courtesy of GENERAL MOTORS CORP.
