Power Mirror Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

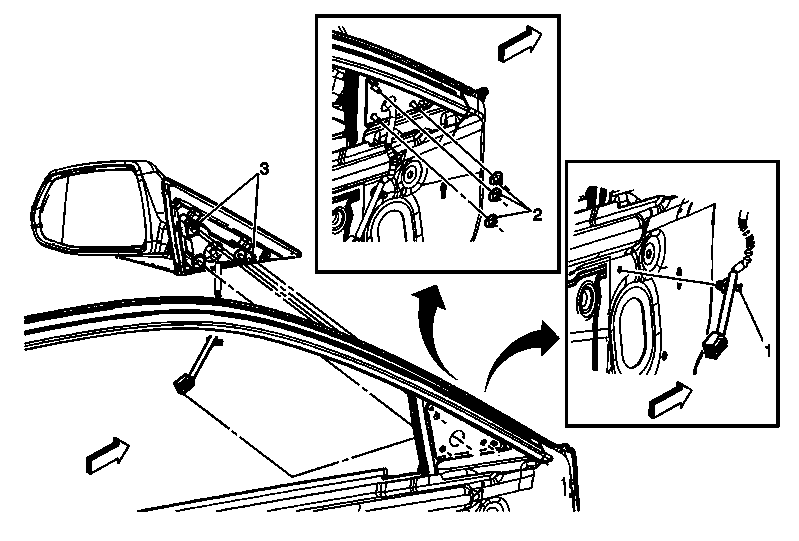

Fig 1: Power Mirror Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the front door upper trim. Refer to Front Side Door Garnish Molding Replacement .
1	Outside Rearview Power Mirror Harness Retainer
2	Outside Rearview Power Mirror Nuts (Qty: 3) NOTE: Refer to Fastener Notice . Procedure Lower the window to the full down position. Disconnect the power mirror wire harness electrical connector. Tighten: 9 N.m (80 lb in)
3	Outside Rearview Power Mirror Tip: Pull the wiring harness through the hole in the mirror patch.
