Brake Fluid Level Indicator Switch Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
Preliminary Procedure:
Disconnect the master cylinder fluid level sensor electrical connector. |

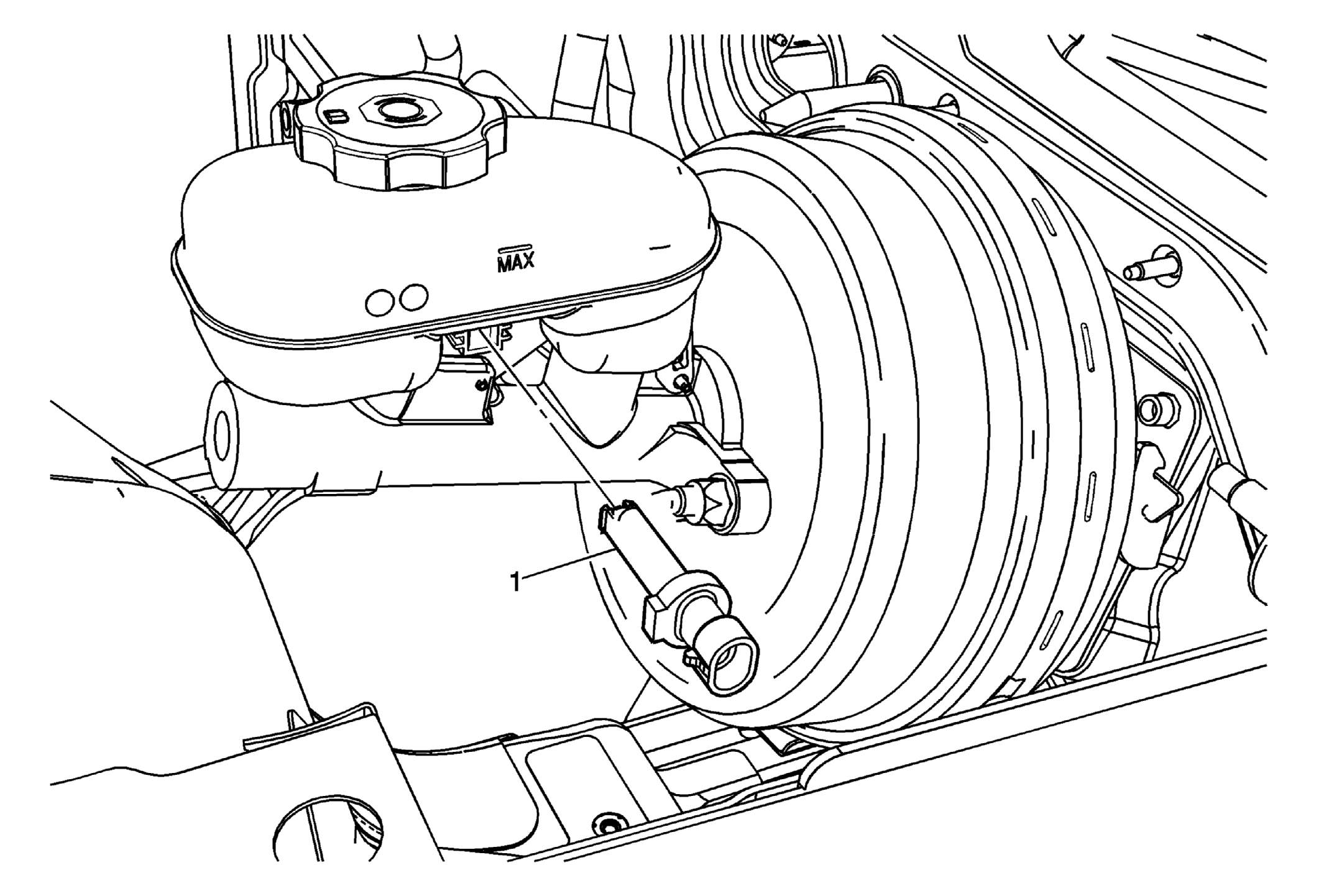

| 1 |
Master Cylinder Fluid Level Sensor
Tip:
Compress the sensor locking tabs on the inboard side of the master cylinder to remove the sensor. |
