Engine Cooling Fan Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

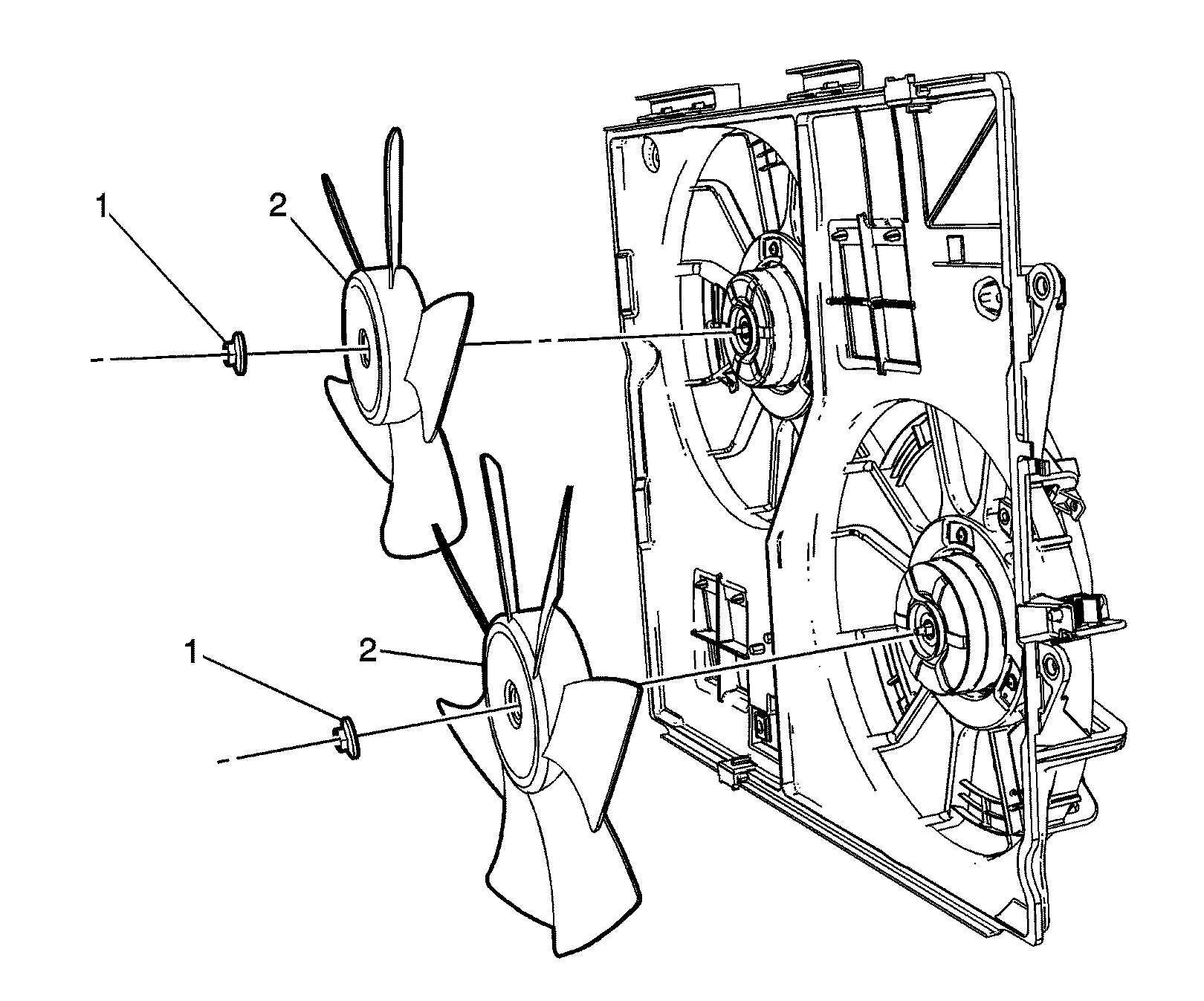

Fig 1: Engine Cooling Fan Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the air cleaner. Refer to Air Cleaner Assembly Replacement Remove the cooling fan shroud. Refer to Fan Shroud Replacement .
1	Remove the cooling fan nuts (Qty:2). NOTE: Refer to Fastener Notice . Tighten: 7 N.m (62 lb in)
2	Remove the cooling fans.

Callout

Component Name

Preliminary Procedures

Remove the air cleaner. Refer to Air Cleaner Assembly Replacement
Remove the cooling fan shroud. Refer to Fan Shroud Replacement .

Remove the cooling fan nuts (Qty:2).

NOTE: Refer to Fastener Notice .

Tighten: 7 N.m (62 lb in)

Remove the cooling fans.
