Hybrid Energy Storage Component Views

WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Drive Motor Battery Components
GM1869639Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Case Upper Cover Assembly
2 Battery Upper Cover Nut
3 Bar Code Label
4 Battery Danger Label
5 Drive Motor Battery Case Upper Cover Bolt
6 Battery Side Cover Nut
7 Drive Motor Battery Right Side Cover
8 Drive Motor Battery Side Cover Bolt
9 Battery Caution Label
10 Drive Motor Battery Cable Assembly Nut
11 Drive Motor Battery Positive Relay Cable Assembly
12 Drive Motor Battery Current Sensor Assembly
13 Drive Motor Generator Battery Current Sensor Bracket
14 Drive Motor Battery Current Sensor Bolt
15 Drive Motor Generator Battery Control Module Assembly
16 Drive Motor Battery Control Module Bracket
17 Drive Motor Battery Control Module Bracket Bolt
18 Battery Cable Clip
19 Drive Motor Battery Control Module Bracket Bolt
20 Drive Motor Battery Control Module Bracket
21 Drive Motor Battery Positive and Negative Cable Bolt
22 Drive Motor Battery Positive and Negative Cable Assembly
23 Battery Front Cover Retainer
24 Drive Motor Battery Front Cover Assembly
25 Drive Motor Battery Front Cover Bolt
26 Battery Terminal Cover
27 Battery Terminal Cover
28 Battery Terminal Cover
29 Drive Motor Battery Cooling Air Outlet Duct Seal
30 Drive Motor Battery with Case
31 Drive Motor Battery Cooling Air Outlet Duct Seal
32 Drive Motor Battery Current Limit Resistor Nut
33 Drive Motor Battery Inverter Current Limit Resistor
34 Drive Motor Battery Cable Terminal Nut
35 Drive Motor Battery Positive High Voltage Contactor Relay Assembly
36 Drive Motor Battery Wire Harness Connector Retainer
37 Drive Motor Battery Power Inverter Current Limit Relay Assembly
38 Drive Motor Battery Positive High Voltage Contactor Relay Nut
39 Drive Motor Battery Positive Relay Nut
40 Drive Motor Generator Battery Positive Relay Insulator Nut
41 Drive Motor Generator Battery Positive Relay Insulator Assembly
42 Drive Motor Battery Sensor Bracket Bolt
43 Drive Motor Battery Cable Terminal Extension Cover
44 Drive Motor Battery Terminal Block Cover Nut
45 Drive Motor Battery Terminal Extension Cable Bolt
46 Drive Motor Battery Terminal Block Nut
47 Drive Motor Battery Cable Terminal Extension
48 Drive Motor Battery High Voltage Manual Disconnect Knob Housing
49 Drive Motor Battery Cover Terminal Bolt
50 Battery Cable Terminal Retainer
51 Drive Motor Battery High Voltage Manual Disconnect Lever Assembly
52 Drive Motor Battery Disconnect Switch Nut
53 Battery Disconnect Switch Cable Assembly
54 Drive Motor Battery Cable Nut
55 Battery Positive and Negative Cable Cover
56 Drive Motor Battery Cooling Air Outlet Duct Seal
57 Drive Motor Generator Battery Ground Bolt
58 Drive Motor Generator Battery Mounting Nut
59 Battery Terminal Cover
60 Battery Terminal Cover
61 Drive Motor Battery Rear Cover Bolt
62 Drive Motor Battery Rear Cover Assembly
63 Drive Motor Generator Battery Ground Nut
64 Drive Motor Battery Cooling Air Outlet Duct Seal
65 Drive Motor Generator Battery Retainer Nut
66 Drive Motor Generator Battery Negative Relay Bracket Nut
67 Drive Motor Generator Battery Negative Relay Bracket
68 Drive Motor Battery Negative Relay Bracket Bolt
69 Drive Motor Battery Negative High Voltage Contactor Relay Assembly
70 Drive Motor Battery Negative Relay Cable Assembly
71 Drive Motor Battery Cable Assembly Nut
72 Drive Motor Battery Cable Terminal Nut
73 Drive Motor Battery Housing Relay Nut

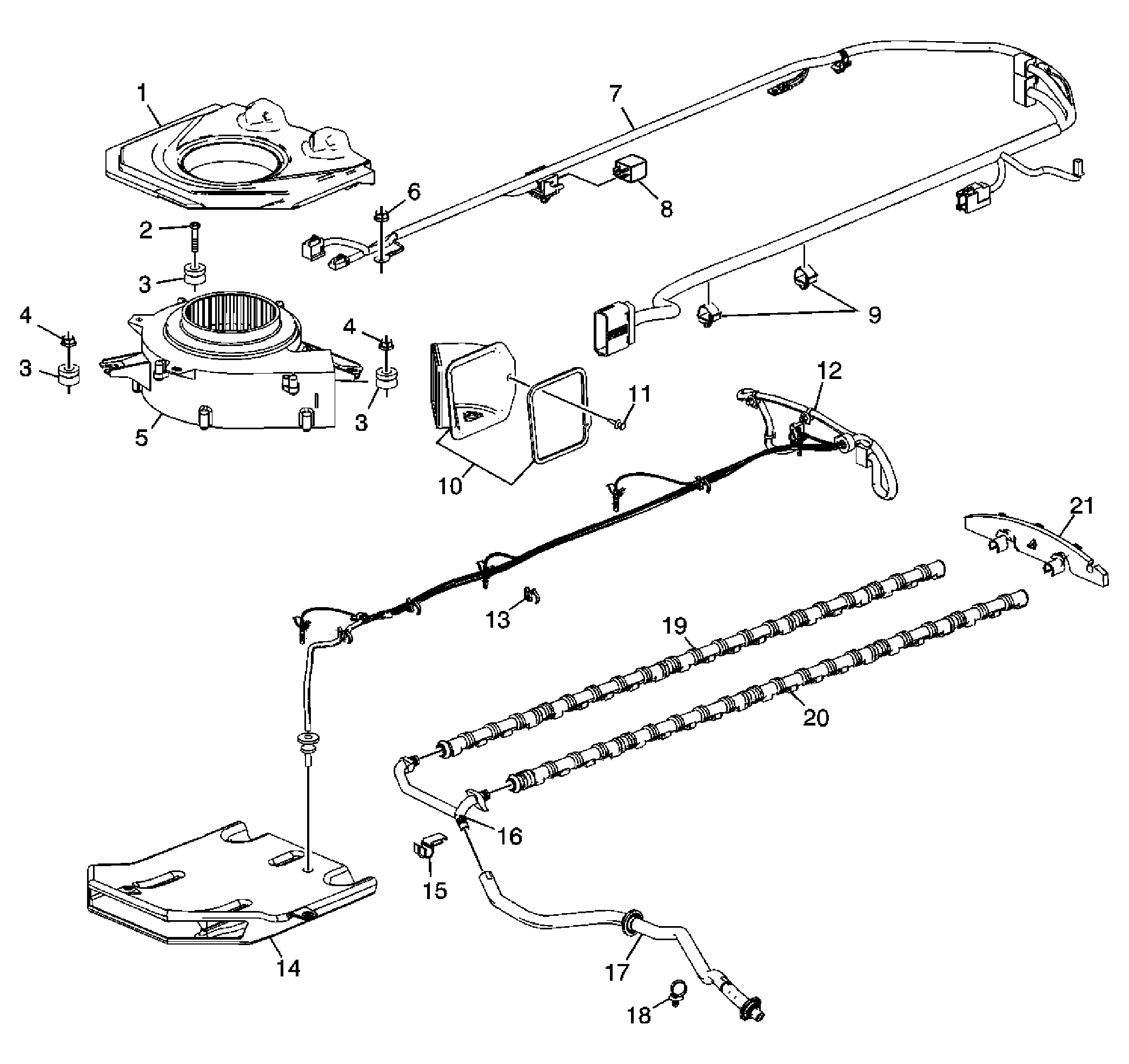

Fig 2: Drive Motor Battery Cooling and Venting Components
GM1869640Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Cooling Air Outlet Duct Assembly
2 Drive Motor Battery Cooling Blower Bolt
3 Drive Motor Battery Vent Fan Insulator
4 Drive Motor Generator Battery Cooling Blower Nut
5 Generator Battery Vent Fan Assembly
6 Battery Negative Cable Ground Nut
7 Drive Motor Battery Control Module Harness
8 Generator Battery Vent Fan Relay Assembly
9 Battery Cable Clip
10 Drive Motor Generator Battery Cooling Outlet Duct
11 Battery Vent Fan Duct Retainer
12 Drive Motor Battery Sensor Module Wiring Harness Assembly
13 Drive Motor Battery Temperature Sensor Clip
14 Drive Motor Generator Battery Cooling Inlet Duct Assembly
15 Battery Vent Hose Y Hose Retainer
16 Battery Vent Tube
17 Battery Vent Tube Assembly
18 Battery Vent Hose Retainer Clip
19 Battery Vent Tube Assembly
20 Battery Vent Tube Assembly
21 Battery Vent Hose Retainer
Fig 3: Generator Battery Positive and Negative Cable and Components
GM2008822Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator Battery Positive and Negative Cable Seal
2 Generator Battery Positive and Negative Cable
3 Drive Motor Battery Positive and Negative Cable Grommet
4 Drive Motor Battery Positive and Negative Cable Grommet Nut
5 300 Volt Positive and Negative Cable Nut
6 Drive Motor Battery Positive and Negative Cable Channel
