Assist Step Replacement (Power)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

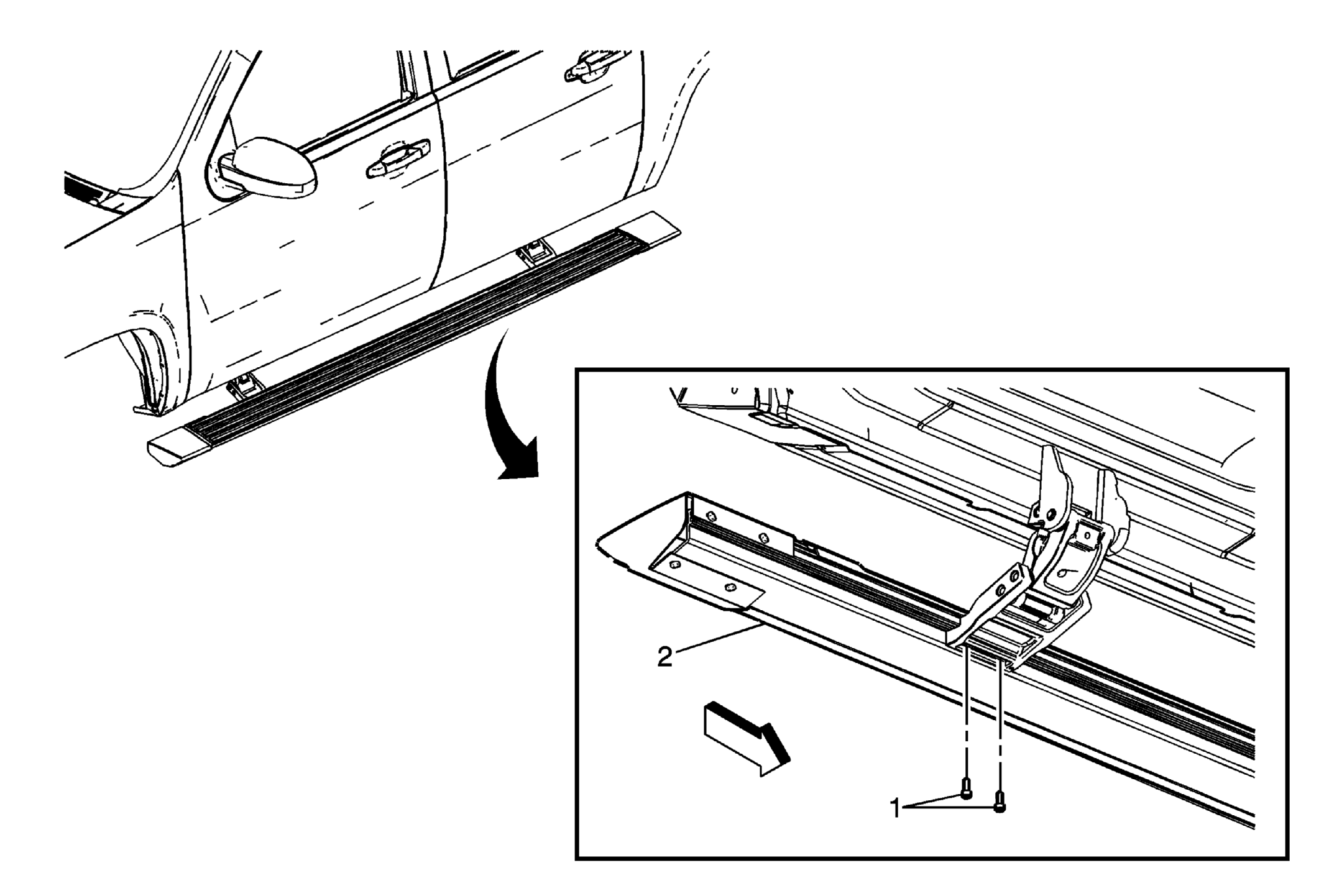

Fig 1: View Of Power Assist Step & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Deploy the power assist step. Mark the location of the front T-slotted bracket and measure to the front of the assist step with a grease pencil and tape measure. Transfer the measurement to the new assist step with the grease pencil and tape measure. Mark the location of the rear T-slotted bracket and measure to the rear of the assist step with a grease pencil and tape measure. Transfer the measurement to the new assist step with the grease pencil and tape measure.
1	Power Assist Step Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 12 N.m (106 lb in)
2	Power Assist Step IMPORTANT: It is essential to make the measurements in the preliminary procedures or the power assist steps may not be aligned to the body properly. Tip: Transfer any parts as needed.

Callout

Component Name

Preliminary Procedures

Deploy the power assist step.
Mark the location of the front T-slotted bracket and measure to the front of the assist step with a grease pencil and tape measure.
Transfer the measurement to the new assist step with the grease pencil and tape measure.
Mark the location of the rear T-slotted bracket and measure to the rear of the assist step with a grease pencil and tape measure.
Transfer the measurement to the new assist step with the grease pencil and tape measure.

Power Assist Step Bolt (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 12 N.m (106 lb in)

Power Assist Step

IMPORTANT: It is essential to make the measurements in the preliminary procedures or the power assist steps may not be aligned to the body properly.

Tip: Transfer any parts as needed.
