Locking Differential Disassembled Views
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Differential Pinion Gear Shaft |
| 2 |
Differential Case |
| 3 |
Differential Pinion Gear Shaft Lock Bolt |
| 4 |
Locking Differential Lockout Bushings |
| 5 |
Locking Differential Clutch Disc Thrust Washer |
| 6 |
Locking Differential Clutch Disc Guide |
| 7 |
Locking Differential Clutch Disc Set |
| 8 |
Differential Pinion Gear Thrust Washer |
| 9 |
Differential Pinion Gear |
| 10 |
Locking Differential Side Gear |
| 11 |
Locking Differential Thrust Block |
| 12 |
Differential Pinion Gear |
| 13 |
Differential Pinion Gear Thrust Washer |
| 14 |
Locking Differential Side Gear, Cam-Faced |
| 15 |
Locking Differential Cam |
| 16 |
Locking Differential Governor |
| 17 |
Wave Washer |
| 18 |
Locking Differential Clutch Disc Set |
| 19 |
Locking Differential Clutch Disc Guide |
| 20 |
Locking Differential Snap Ring Retainer |
| 21 |
Locking Differential Clutch Disc Thrust Washer |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Differential Case |
| 2 |
Differential Pinion Gear Shaft |
| 3 |
Locking Differential Lockout Bushing |
| 4 |
Differential Pinion Gear Shaft Lock Bolt |
| 5 |
Locking Differential Clutch Disc Thrust Washer |
| 6 |
Locking Differential Clutch Disc Set |
| 7 |
Locking Differential Clutch Disc Guide |
| 8 |
Locking Differential Side Gear |
| 9 |
Differential Pinion Gear Thrust Washer |
| 10 |
Differential Pinion Gear |
| 11 |
Locking Differential Governor |
| 12 |
Locking Differential Latching Bracket |
| 13 |
Locking Differential Thrust Block |
| 14 |
Differential Pinion Gear Thrust Washer |
| 15 |
Differential Pinion Gear |
| 16 |
Locking Differential Side Gear, Cam-Faced |
| 17 |
Locking Differential Cam |
| 18 |
Wave Washer |
| 19 |
Locking Differential Clutch Disc Guide |
| 20 |
Locking Differential Clutch Disc Set |
| 21 |
Locking Differential Side Gear Thrust Sleeve |
| 22 |
Differential Side Gear Shim |

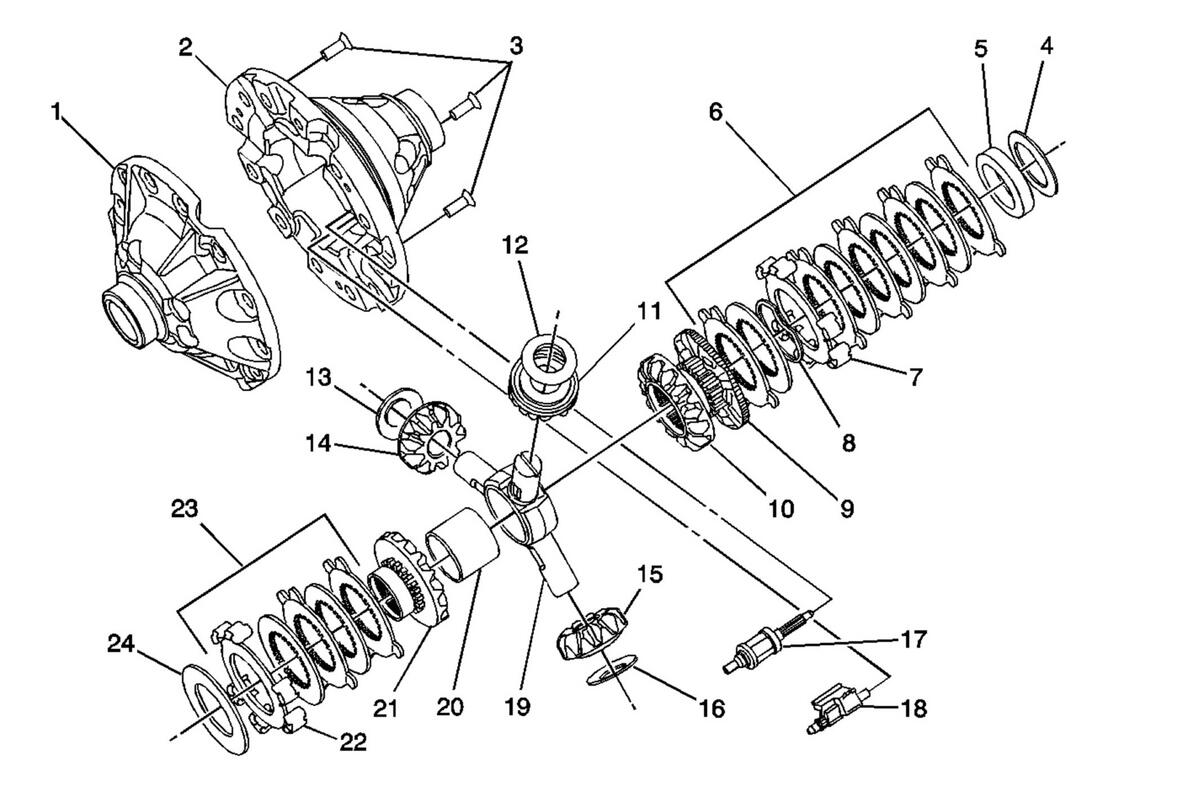

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Differential Case - Left Side |
| 2 |
Differential Case - Right Side |
| 3 |
Differential Case Screws |
| 4 |
Locking Differential Clutch Disc Thrust Washer |
| 5 |
Locking Differential Side Gear Thrust Sleeve |
| 6 |
Locking Differential Clutch Disc Set |
| 7 |
Locking Differential Clutch Disc Guide |
| 8 |
Wave Washer |
| 9 |
Locking Differential Cam |
| 10 |
Locking Differential Side Gear - Cam Faced |
| 11 |
Differential Pinion Gear |
| 12 |
Differential Pinion Gear Thrust Washer |
| 13 |
Differential Pinion Gear Thrust Washer |
| 14 |
Differential Pinion Gear |
| 15 |
Differential Pinion Gear |
| 16 |
Differential Pinion Gear Thrust Washer |
| 17 |
Locking Differential Governor |
| 18 |
Locking Differential Latching Bracket and Spring |
| 19 |
Locking Differential Spider |
| 20 |
Locking Differential Thrust Block |
| 21 |
Locking Differential Side Gear |
| 22 |
Locking Differential Clutch Disc Guide |
| 23 |
Locking Differential Clutch Disc Set |
| 24 |
Differential Side Gear Shim |
